BD Diesel Xtruded Transmission Oil Cooler - 1/2 inch Cooler Lines

Manufacturer: BD Diesel

Article no.: 1030606-1/2

€980.56*

Questions about the product? Write us!

Available at US supplier, delivery time: 7-10 working days (EU +3)

incl. 19% VAT plus shipping costs

BD Diesel Xtruded Transmission Oil Cooler - 1/2 inch Cooler Lines

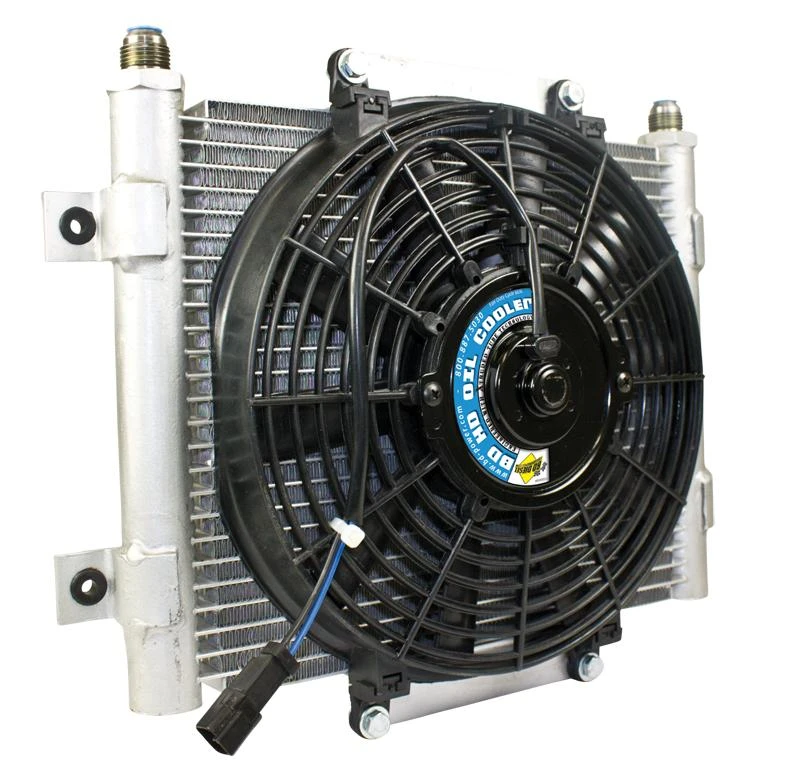

The BD Diesel Xtruded Transmission Oil Cooler is engineered to provide superior cooling performance for automatic transmissions, especially under heavy load and high-temperature conditions. Featuring 200 micro extruded passages, it offers 22% more cooling capacity than conventional designs by maximizing surface area for efficient heat transfer with external airflow.

This cooler is designed with large 5/8-inch ports to prevent inlet and outlet restrictions, and furnace brazed rails tested to withstand pressures up to 300 psi ensure durability and reliability. A thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan provides automatic oil temperature regulation, maintaining optimal transmission temperatures even during demanding driving scenarios.

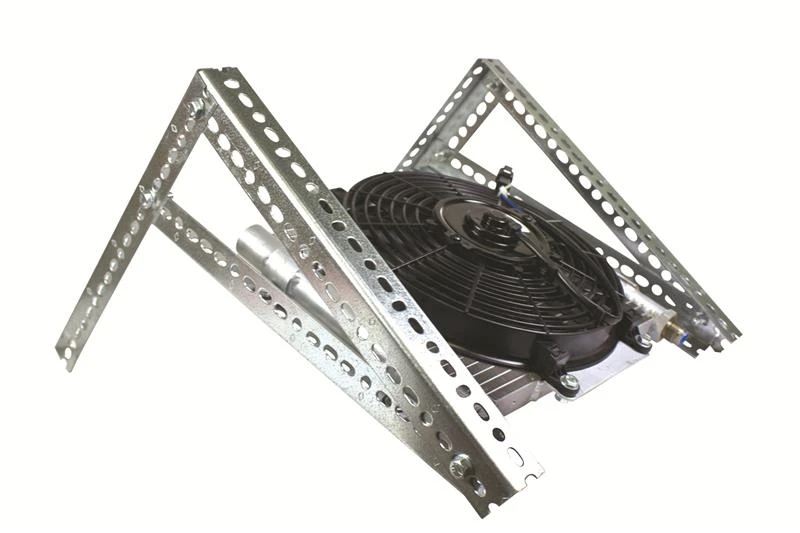

The complete kit includes all necessary fittings, clamps, hoses, hardware, and a build-it-yourself galvanized bracket kit for quick and clean installation without the need for fabricating custom brackets. The pre-wired loomed harness with fuse and relay features OEM-style sealed connectors for a factory-like installation that resists environmental elements.

22% more cooling over other designs
200 micro extruded passages for enhanced heat transfer
Large 5/8-inch ports to prevent flow restriction
Furnace brazed rails tested to 300 psi pressure
Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
Complete kit with fittings, clamps, hoses, hardware, and galvanized bracket kit
Pre-wired loomed harness with fuse, relay, and plug-in connectors
Designed for 1/2 inch cooler lines, compatible with Dodge 47RH, 47RE, 48RE, 68RFE, and Ford 5R110 transmissions

This product has not yet been assigned to any vehicle. We are working to ensure that this changes as soon as possible. Please contact us if you have any questions.
