BD Diesel Xtruded Transmission Oil Cooler - 5/16 inch Cooler Lines

BD Diesel Xtruded Transmission Oil Cooler - 5/16 inch Cooler Lines

The BD Diesel Xtruded Transmission Oil Cooler delivers 22% more cooling efficiency compared to other designs, featuring 200 micro extruded passages that provide a large surface area for optimal heat transfer through external airflow cooling. Its turbulent oil flow design ensures more complete cooling, while large 5/8-inch ports prevent inlet and outlet restrictions.

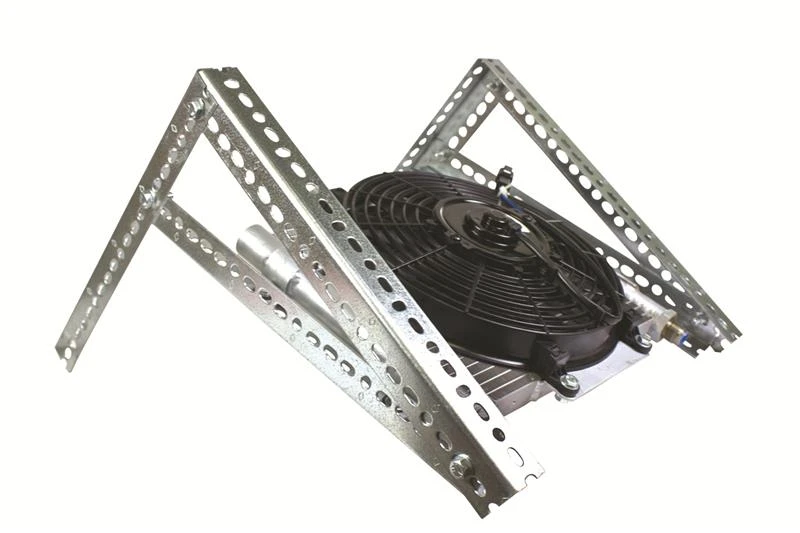

Constructed with furnace brazed rails tested to 300 psi pressure, this cooler is equipped with a thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan for automatic oil temperature regulation. Rated at 33,930 BTU/HR and suitable for vehicles exceeding 30,000 GVW, the kit includes all necessary fittings, clamps, hoses, hardware, and a build-it-yourself galvanized bracket kit for quick and clean installation without the need for fabricating brackets from scrap metal.

The pre-wired loomed harness with fuse and relay features OEM-style sealed plug-in connectors for a factory-like installation appearance and resistance to environmental elements.

• 22% more cooling over other designs
• 200 micro extruded passages for enhanced heat transfer
• Turbulent oil flow design for complete cooling
• Large 5/8-inch ports to prevent restriction
• Furnace brazed rails tested to 300 psi
• Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
• 33,930 BTU/HR cooling capacity
• Complete kit with fittings, clamps, hoses, hardware
• Build-it-yourself galvanized bracket kit for easy installation
• Pre-wired loomed harness with fuse, relay, and plug-in connectors
