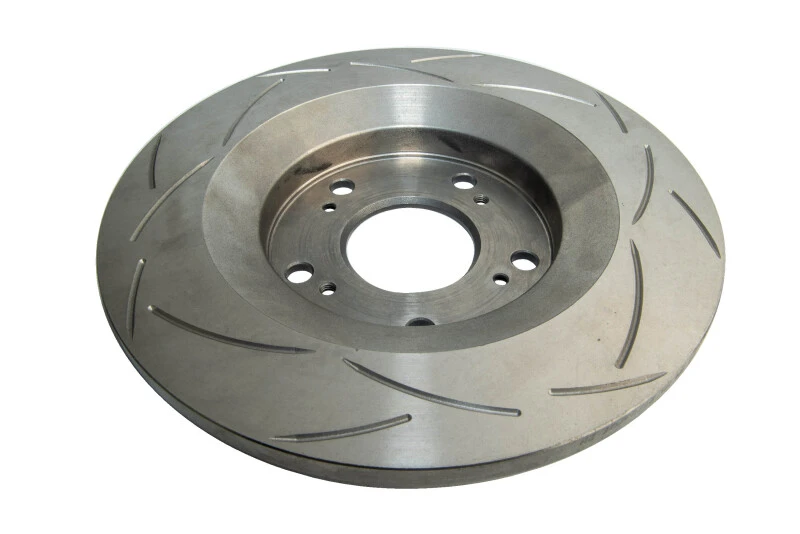

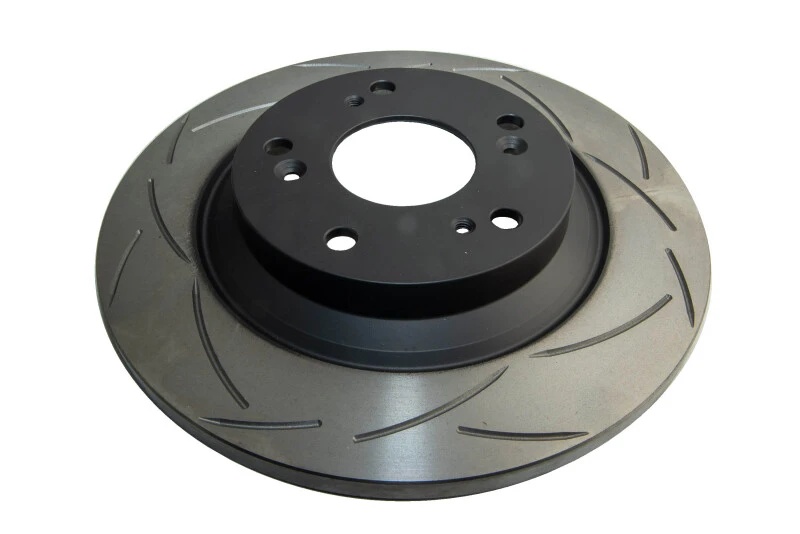

DBA 00-05 S2000 Rear Slotted Street Series Rotor
Upgrade your Honda S2000's braking performance with DBA's Street Series Rear Slotted Rotor. Cast from XG-150 high carbon alloyed iron, this rotor is designed to handle the intense heat and stress generated by repeated braking applications.
Featuring DBA's patented Kangaroo Paw ventilation system, this rotor boasts a 30% increase in surface area and 20% improvement in cooling efficiency compared to traditional straight vane designs.
- Kangaroo Paw ventilation for increased surface area and heat dissipation
- Direct replacement suitability for hassle-free installation
- CBN-machined turned for lower Disc Thickness Variation and parallelism
- Moisture-proof corrosion protection packaging
| Diameter [mm] | 282 |
| Disc Vent | Solid |
| Number of Holes | 5 |
| Inner Diameter [mm] | 64 |
| Minimum Thickness [mm] | 10 |
| Thickness [mm] | 12 |
| Height [mm] | 40 |
| Pitch Circle [mm] | 114.3 |
| Stage | Stage 2 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11 90R-02C01704/72742 |
- Rear - HONDA/S2000/2.0 (1999-2004) Brake Pads: DB1265, Brake Caliper: Akebono
- Rear - HONDA/S2000/2.0 (2004-2009) Brake Pads: DB1265, Brake Caliper: Akebono
DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
