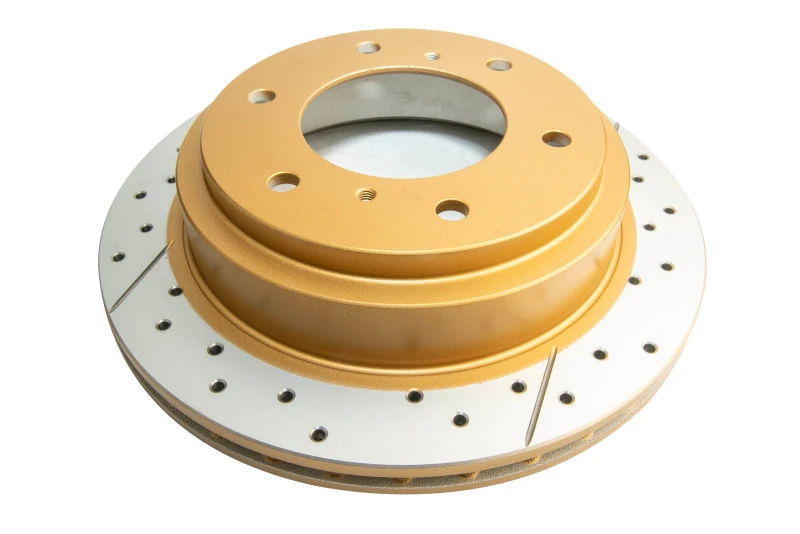

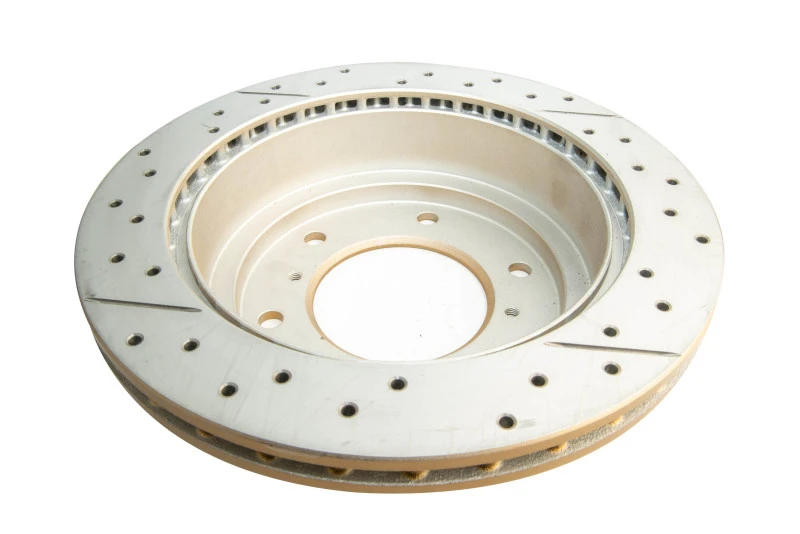

DBA 00-06 for Mitsubishi Montero Rear Street Series Drilled & Slotted Rotor

Manufacturer: DBA

Article no.: 661X

€161.84*

Available from the supplier, delivery time: 4-5 working days

DBA 00-06 Mitsubishi Montero Rear Street Series Drilled & Slotted Rotor

Upgrade your brake performance with DBA's Street Series rotors, featuring a unique cross-drilled and slotted design. This innovative design increases the number of exit points, allowing more brake pad friction dust and gases to escape, resulting in better braking performance.

The Kangaroo Paw ventilation system, with 144 diamond and tear drop pillar ventilation, increases surface area for greater heat dissipation, reducing brake fade and increasing braking effectiveness. The CBN-machined turned surface provides lower Disc Thickness Variation and parallelism, minimizing brake shudder.

Unique cross-drilled and slotted design for improved braking performance
Kangaroo Paw ventilation system for increased heat dissipation
CBN-machined turned surface for reduced brake shudder
Direct replacement suitability for easy installation

Diameter [mm]	300
Disc Vent	Kangaroo Paw
Number of Holes	6
Inner Diameter [mm]	94
Minimum Thickness [mm]	20,4
Thickness [mm]	22
Height [mm]	72
Pitch Circle [mm]	139.7
Stage	Stage 1
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info

Rear - MITSUBISHI/Pajero/3.2 TD V68 (1999-2006) Brake Pads: DB1464, Brake Caliper: Akebono
Rear - MITSUBISHI/Pajero/3.2 TD V78 (1999-2006) Brake Pads: DB1464, Brake Caliper: Akebono
Rear - MITSUBISHI/Pajero/3.2 TD V88 (2006-2019) Brake Pads: DB1464, Brake Caliper: Akebono
Rear - MITSUBISHI/Pajero/3.5 (V65) (1999-2006) Brake Pads: DB1464, Brake Caliper: Akebono
Rear - MITSUBISHI/Pajero/3.5 (V75) (1999-2006) Brake Pads: DB1464, Brake Caliper: Akebono
Rear - MITSUBISHI/Pajero/3.5 (V87) (2006-2019) Brake Pads: DB1464, Brake Caliper: Akebono
Rear - MITSUBISHI/Pajero/3.8 (V87) (2006-2019) Brake Pads: DB1464, Brake Caliper: Akebono
Rear - MITSUBISHI/Shogun/2.5 TD V64 (2000-2006) Brake Pads: DB1464, Brake Caliper: Akebono
Rear - MITSUBISHI/Shogun/3.2 TD V68 (2000-2006) Brake Pads: DB1464, Brake Caliper: Akebono
Rear - MITSUBISHI/Shogun/3.2 TD V78 (2000-2006) Brake Pads: DB1464, Brake Caliper: Akebono
Rear - MITSUBISHI/Shogun/3.2 TD V88 SWB (2006-2019) Brake Pads: DB1464, Brake Caliper: Akebono
Rear - MITSUBISHI/Shogun/3.5 V65 (2000-2006) Brake Pads: DB1464, Brake Caliper: Akebono
Rear - MITSUBISHI/Shogun/3.5 V75 (2000-2006) Brake Pads: DB1464, Brake Caliper: Akebono

DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
