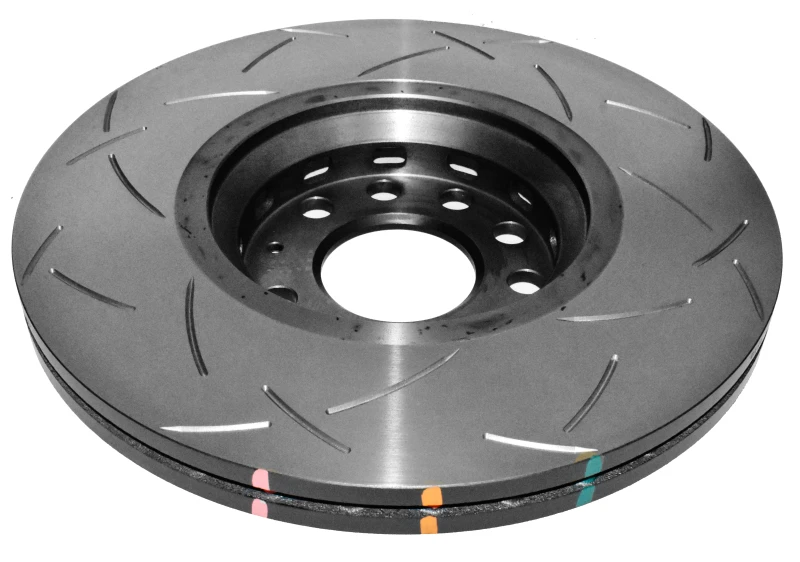

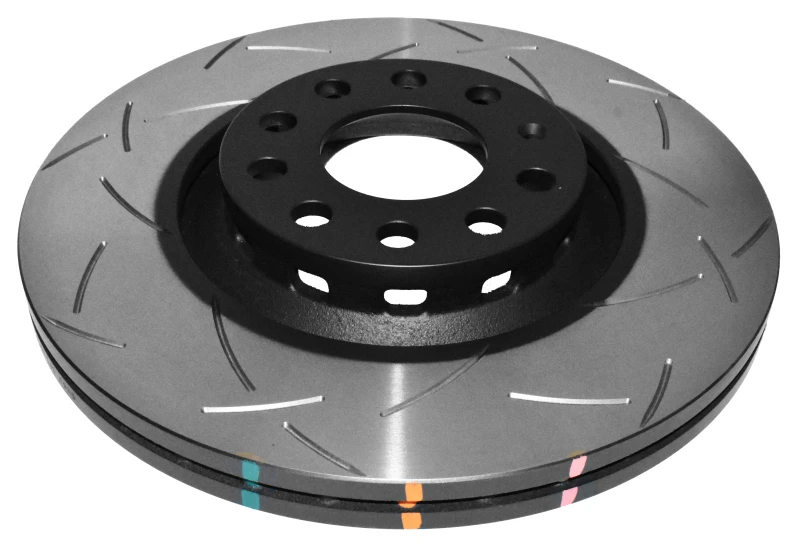

DBA 02-06 Audi A4 3.0L Front 4000 Series Slotted Rotor
Upgrade your Audi A4's braking performance with DBA's 4000 Series T3 slotted rotor. Built on the foundations of DBA's T2 slot, the T3 slot design features additional, precise, CNC machined tri-symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel.
DBA's 4000 Series T3 rotors are recommended for all performance applications from street driving, 4x4 and SUV, light utility vehicles, track days, rally cars and armored vehicles.
- XG-150 High Carbon Alloyed Iron construction
- TSP (Thermal Stability Profiling) for improved heat handling
- Thermo-graphic paint markings (THGP) for accurate temperature monitoring
- Direct replacement suitability for easy installation
- Moisture proof corrosion protection packaging
| Diameter [mm] | 312 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 5 |
| Inner Diameter [mm] | 68 |
| Minimum Thickness [mm] | 23 |
| Thickness [mm] | 25 |
| Height [mm] | 46.2 |
| Pitch Circle [mm] | 112 |
| Stage | Stage 4 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*60529*00 |
| Make | Model | Year | Type |
|---|---|---|---|
| Audi | A4 | 2002 | Base |
| Audi | A4 | 2003 | Base |
| Audi | A4 | 2003 | Cabriolet |
| Audi | A4 | 2004 | Base |
| Audi | A4 | 2004 | Cabriolet |
| Audi | A4 | 2005 | Cabriolet |
| Audi | A4 Quattro | 2002 | Avant |
| Audi | A4 Quattro | 2002 | Base |
| Audi | A4 Quattro | 2003 | Avant |
| Audi | A4 Quattro | 2003 | Base |
| Audi | A4 Quattro | 2004 | Avant |
| Audi | A4 Quattro | 2004 | Base |
| Audi | A4 Quattro | 2004 | Cabriolet |
| Audi | A4 Quattro | 2005 | Cabriolet |
| Audi | A4 Quattro | 2006 | Cabriolet |
| Audi | A6 | 2002 | Base |
| Audi | A6 | 2003 | Base |
| Audi | A6 | 2004 | Base |
| Audi | A8 | 1997 | Base |
| Audi | A8 | 1998 | Base |
| Audi | A8 | 1999 | Base |
DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
