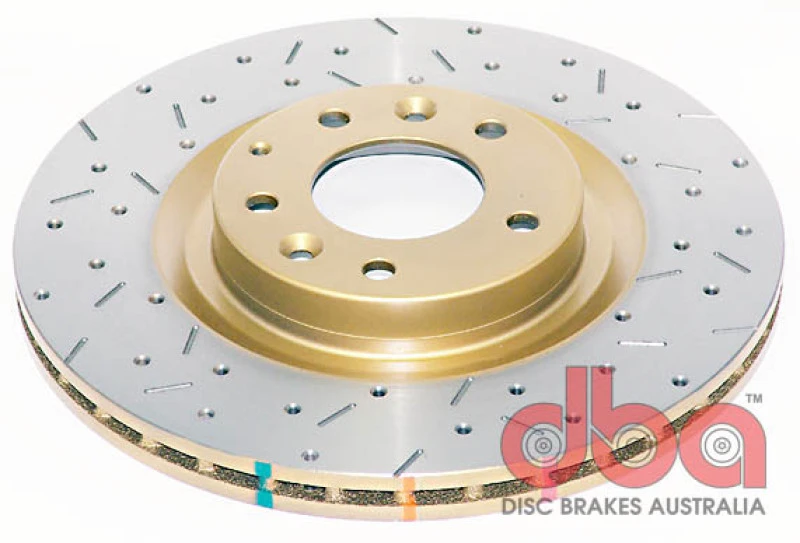

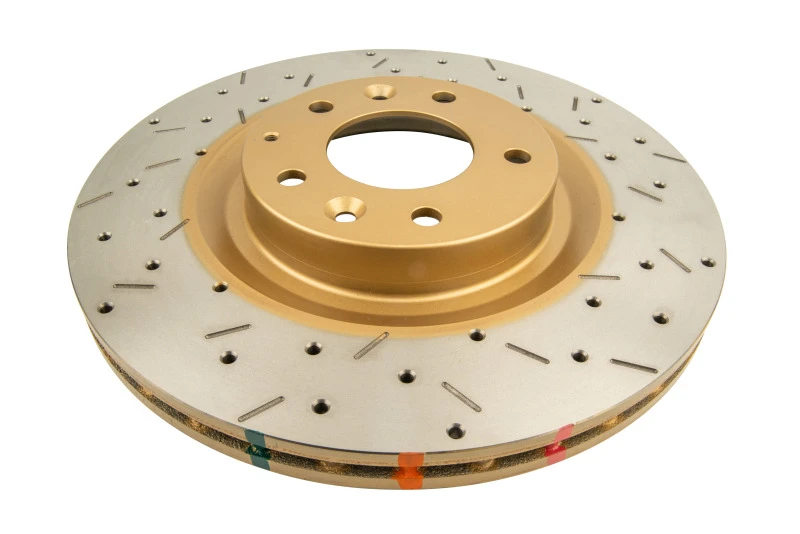

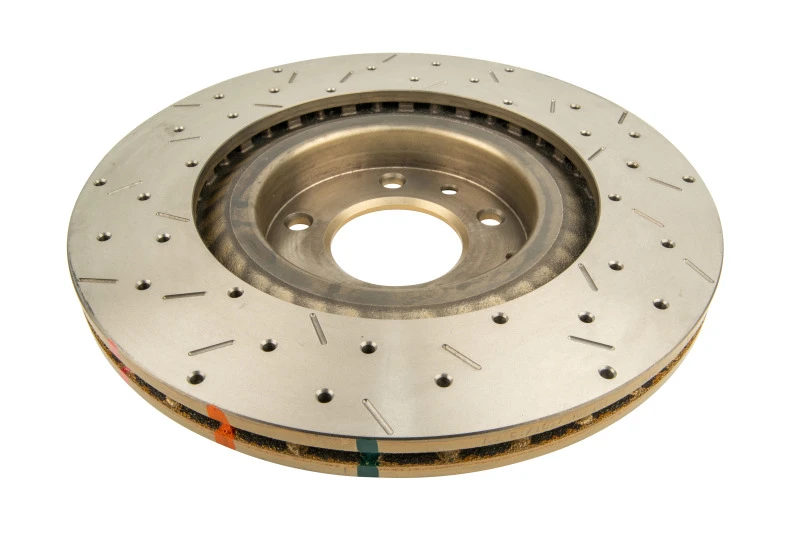

DBA 03-10 RX-8 Sport Suspension Front Drilled & Slotted 4000 Series Rotor

Manufacturer: DBA

Article no.: 42550XS

€268.94*

Limited availability, delivery time on request

DBA 03-10 RX-8 Sport Suspension Front Drilled & Slotted 4000 Series Rotor

Take your braking performance to the next level with DBA's 4000 Series XS rotors. Featuring our best technology and materials, these rotors are designed for maximum performance. With high carbon and heat-treated iron, patented Kangaroo Paw ventilation, and a unique drill and slot pattern, these rotors are the perfect direct replacement for your vehicle.

Kangaroo Paw ventilation for increased surface area and heat dissipation
Direct replacement suitability for easy installation
CBN (Cubic Boron Nitride) machined turned for lower Disc Thickness Variation and parallelism
Moisture-proof corrosion protection packaging for extended lifespan

Diameter [mm]	323
Disc Vent	Kangaroo Paw
Number of Holes	5
Inner Diameter [mm]	72
Minimum Thickness [mm]	22
Thickness [mm]	24
Height [mm]	46
Pitch Circle [mm]	114.3
Stage	Stage 3
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info

Make	Model	Year	Type
Mazda	RX-8	2005	Shinka
Mazda	RX-8	2008	Sport
Mazda	RX-8	2009	Sport
Mazda	RX-8	2010	Sport
Mazda	RX-8	2011	Sport

DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
