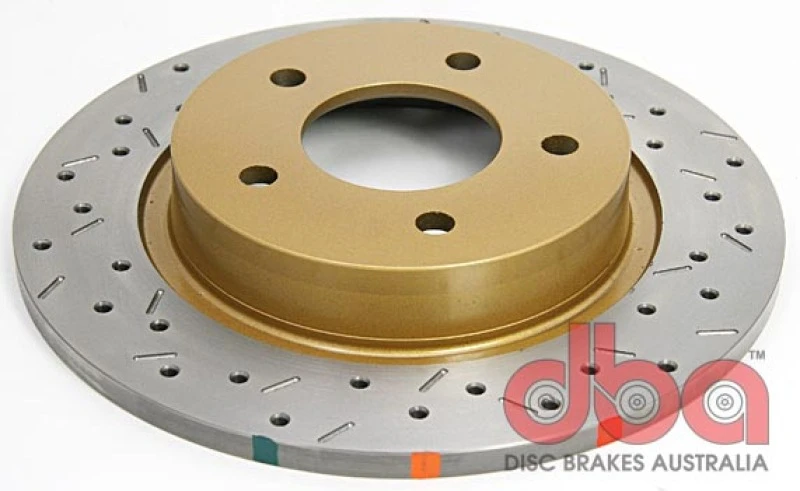

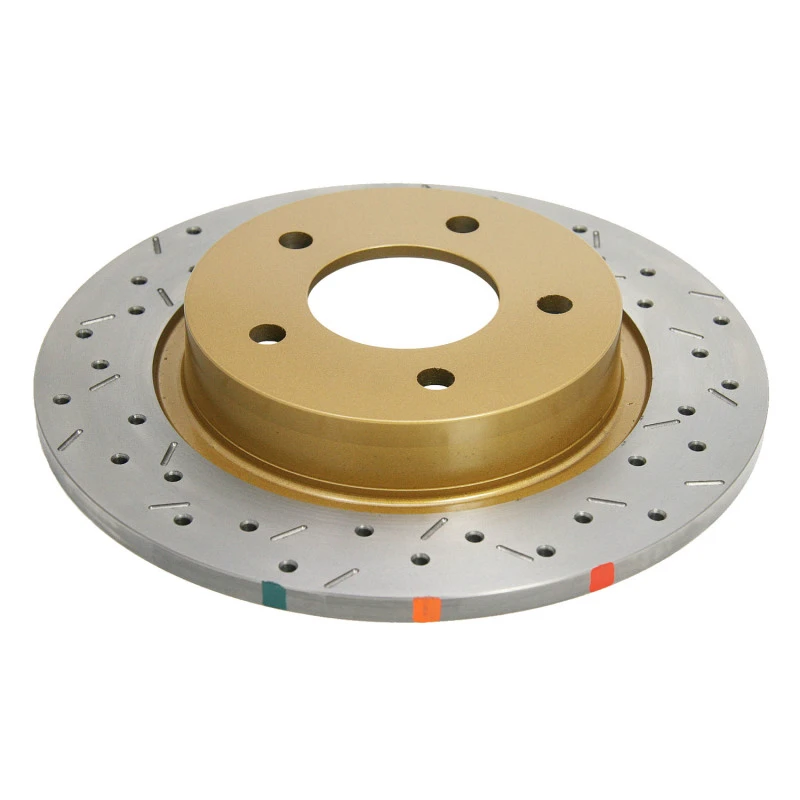

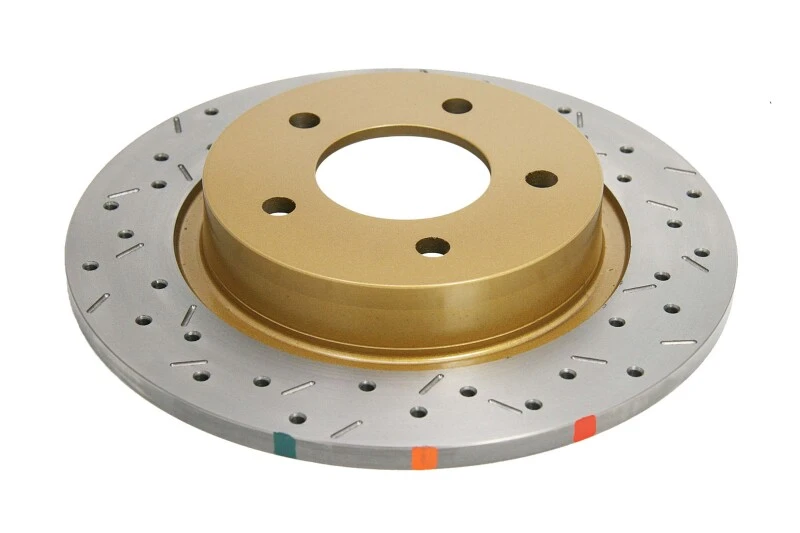

DBA 04-05 Mazda 3 2.3L / 06+ MazdaSpeed3 Rear Drilled & Slotted 4000 Series Rotor
Upgrade your Mazda 3's braking performance with DBA's 4000 Series XS rotors, featuring patented Kangaroo Paw ventilation and a unique drill & slot pattern. These high-carbon, heat-treated iron rotors provide maximum performance and durability.
- Kangaroo Paw ventilation for increased surface area and heat dissipation
- Direct replacement suitability for easy installation
- CBN-machined turned for lower Disc Thickness Variation and parallelism
- Moisture-proof corrosion protection packaging
| Diameter [mm] | 279,5 |
| Disc Vent | Solid |
| Number of Holes | 5 |
| Inner Diameter [mm] | 72 |
| Minimum Thickness [mm] | 9 |
| Thickness [mm] | 11 |
| Height [mm] | 41.5 |
| Pitch Circle [mm] | 114.3 |
| Stage | Stage 3 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11 90R-02C01704/72742 |
| Make | Model | Year | Type |
|---|---|---|---|
| Mazda | 3 | 2004 | S |
| Mazda | 3 | 2005 | S |
| Mazda | 3 | 2005 | SP23 |
| Mazda | 3 | 2006 | S |
| Mazda | 3 | 2007 | Mazdaspeed |
| Mazda | 3 | 2007 | S |
| Mazda | 3 | 2008 | Mazdaspeed |
| Mazda | 3 | 2008 | S |
| Mazda | 3 | 2009 | Mazdaspeed |
| Mazda | 3 | 2009 | S |
| Mazda | 3 | 2010 | Mazdaspeed |
| Mazda | 3 | 2011 | Mazdaspeed |
| Mazda | 3 | 2011 | S |
| Mazda | 3 | 2012 | Mazdaspeed |
| Mazda | 3 | 2013 | Mazdaspeed |
DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
