DBA 04-07 STi/2017 BRZ w/Perf. Pkg. 10 Hole Front Drilled/Slotted 5000 Series 2 Pc Rotor w/Gold Hat
Manufacturer:
DBA
Article no.:
5654GLDXS-10
Questions about the product? Write us!
DBA 04-07 STi/2017 BRZ w/Perf. Pkg. 10 Hole Front Drilled/Slotted 5000 Series 2 Pc Rotor w/Gold Hat

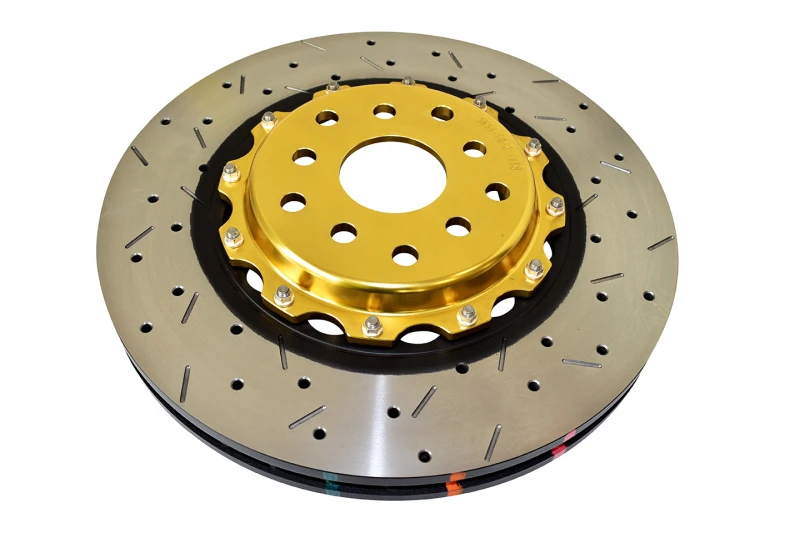

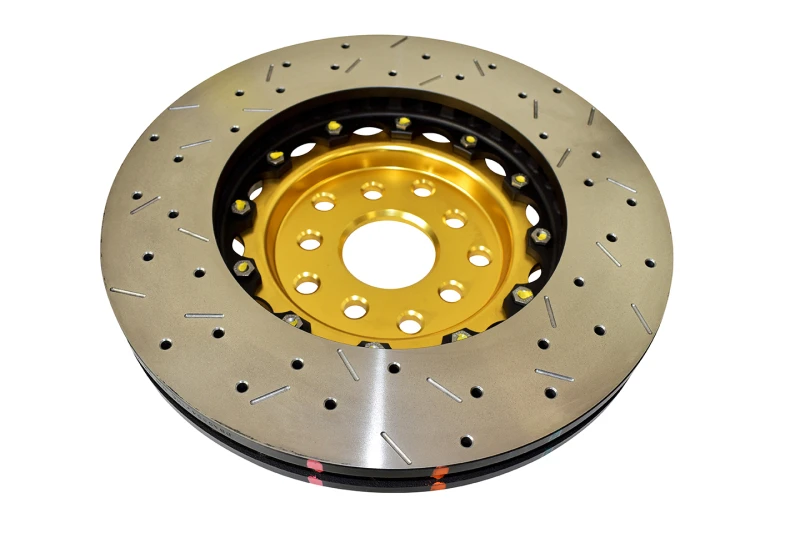

Take your braking performance to the next level with DBA's 5000 Series rotors. These 2-piece direct replacement brake rotors combine high carbon cast-iron rings with aerospace grade aluminum hats for optimal performance under strenuous circumstances.
Featuring National Aerospace Standards (NAS) bolts and crimp nuts, these rotors ensure uniform radial disc expansion and reduced heat transfer from disc to hub. The use of aerospace grade aluminum hats reduces unsprung weight, allowing for improved heat management and further weight reduction.
- Aluminium hats (T6061-T6)
- National Aerospace Standard (NAS) bolts and crimp nuts
- Replacement disc rotors available
- XG-150 High Carbon Alloyed Iron
- TSP (Thermal Stability Profiling)
- Thermo-graphic Paint markings (THGP)
- Direct replacement suitability
- Moisture proof corrosion protection packaging
| Diameter [mm] | 326 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 10 |
| Inner Diameter [mm] | 58 |
| Minimum Thickness [mm] | 28 |
| Thickness [mm] | 30 |
| Height [mm] | 53 |
| Pitch Circle [mm] | 100 & 114.3 |
| Stage | Stage 5 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| Make | Model | Year | Type |
|---|---|---|---|
| Subaru | Impreza | 2004 | WRX STI |
| Subaru | Impreza | 2005 | WRX STI |
| Subaru | Impreza | 2006 | WRX STI |
| Subaru | Impreza | 2007 | WRX STI |
| Subaru | Impreza | 2008 | WRX STI |
| Subaru | Impreza | 2009 | WRX STI |
| Subaru | Impreza | 2010 | WRX STI |
| Subaru | Impreza | 2011 | WRX STI |
| Subaru | Impreza | 2011 | WRX STI Limited |
| Subaru | Impreza | 2012 | WRX STI |
| Subaru | Impreza | 2012 | WRX STI Limited |
| Subaru | Impreza | 2013 | WRX STI |
| Subaru | Impreza | 2013 | WRX STI Limited |
| Subaru | Impreza | 2014 | WRX STI |
| Subaru | Impreza | 2014 | WRX STI Limited |
| Subaru | WRX STI | 2015 | Base |
| Subaru | WRX STI | 2015 | Launch Edition |
| Subaru | WRX STI | 2015 | Limited |
| Subaru | WRX STI | 2016 | Base |
| Subaru | WRX STI | 2016 | Limited |
| Subaru | WRX STI | 2016 | Series.HyperBlue |
DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
