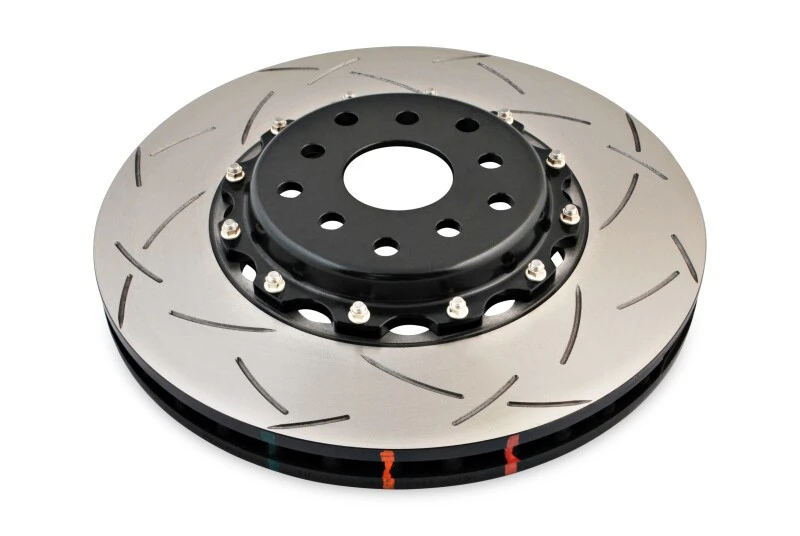

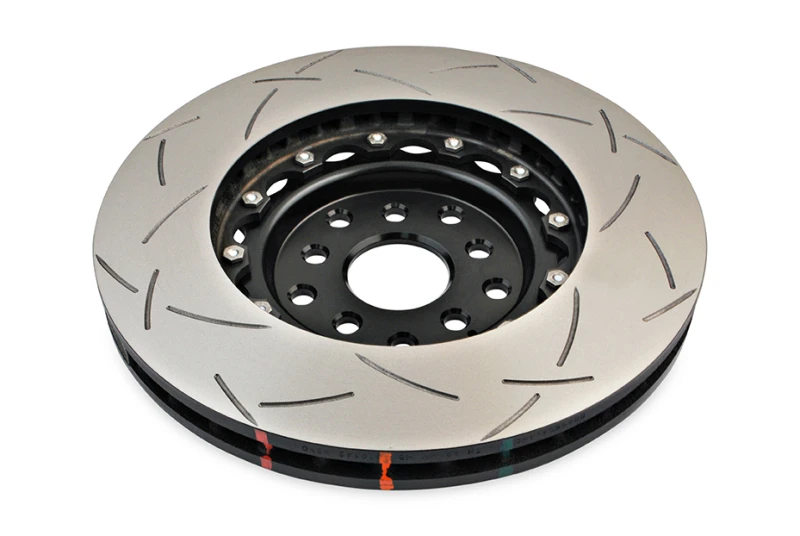

DBA 04-07 STi/2017 BRZ w/Perf. Pkg. 10 Hole Front Slotted 5000 Series 2/PC Rotor Assembled w/Blk Hat

Manufacturer: DBA

Article no.: 5654BLKS-10

€534.31*

Available from supplier. Delivery time: 4–5 business days (EU: +3 days)

DBA 04-07 STi/2017 BRZ w/Perf. Pkg. 10 Hole Front Slotted 5000 Series 2/PC Rotor Assembled w/Blk Hat

Experience the ultimate in braking performance with DBA's 5000 Series rotors. These two-piece direct replacement brake rotors combine high carbon cast-iron rings with aerospace grade aluminum hats (T6061-T6) for optimal performance under the most strenuous circumstances.

Aluminum hats (T6061-T6) for reduced unsprung weight and improved heat management
National Aerospace Standard (NAS) bolts and crimp nuts for maximum durability
Replacement disc rotors available for easy maintenance
XG-150 High Carbon Alloyed Iron for improved thermal stability
TSP (Thermal Stability Profiling) for consistent performance
Thermo-graphic Paint markings (THGP) for accurate temperature monitoring
Direct replacement suitability for easy installation
Moisture proof corrosion protection packaging for extended lifespan

Diameter [mm]	326
Disc Vent	Kangaroo Paw
Number of Holes	10
Inner Diameter [mm]	58
Minimum Thickness [mm]	28
Thickness [mm]	30
Height [mm]	53
Pitch Circle [mm]	100 & 114.3
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
Replacement Rotor	DBA5654.1S
ECE R90 number	E1190R02/0660533*00

Make	Model	Year	Type
Subaru	Impreza	2004	WRX STI
Subaru	Impreza	2005	WRX STI
Subaru	Impreza	2006	WRX STI
Subaru	Impreza	2007	WRX STI
Subaru	Impreza	2008	WRX STI
Subaru	Impreza	2009	WRX STI
Subaru	Impreza	2010	WRX STI
Subaru	Impreza	2011	WRX STI
Subaru	Impreza	2011	WRX STI Limited
Subaru	Impreza	2012	WRX STI
Subaru	Impreza	2012	WRX STI Limited
Subaru	Impreza	2013	WRX STI
Subaru	Impreza	2013	WRX STI Limited
Subaru	Impreza	2014	WRX STI
Subaru	Impreza	2014	WRX STI Limited
Subaru	WRX STI	2015	Base
Subaru	WRX STI	2015	Launch Edition
Subaru	WRX STI	2015	Limited
Subaru	WRX STI	2016	Base
Subaru	WRX STI	2016	Limited
Subaru	WRX STI	2016	Series.HyperBlue

DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
