DBA 05-12 Corvette C6 w/Z06 pkg Front Drilled & Slotted 5000 Series 2 Piece Rotor Assembled w/ Gold
Manufacturer:
DBA
Article no.:
52992GLDXS
Questions about the product? Write us!

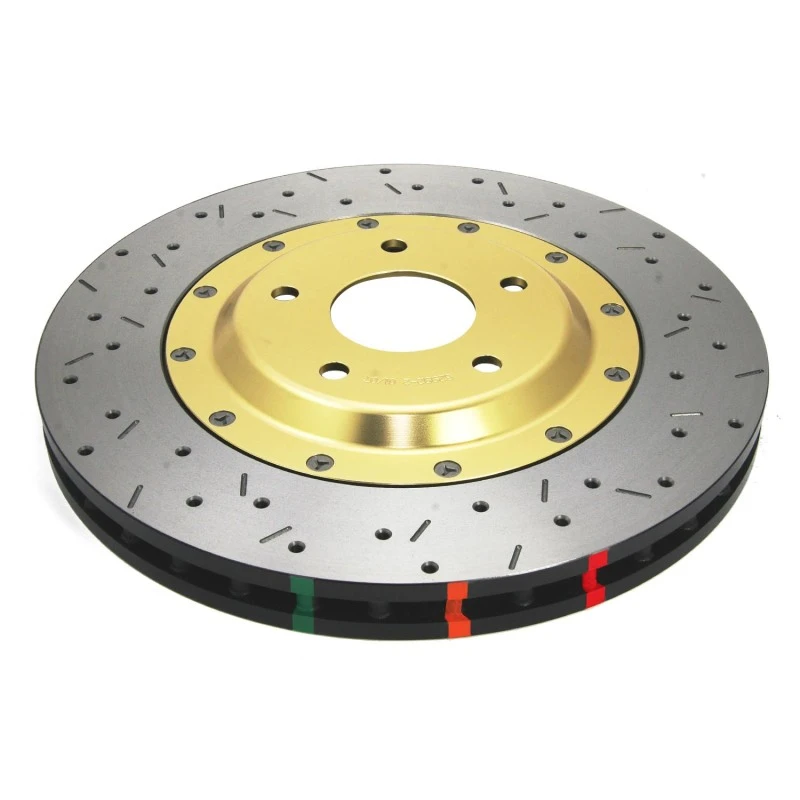

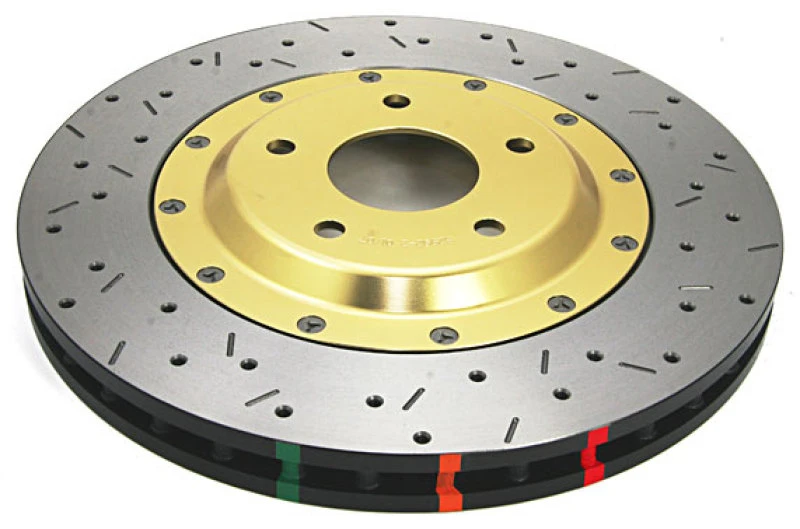

DBA 05-12 Corvette C6 w/Z06 pkg Front Drilled & Slotted 5000 Series 2 Piece Rotor Assembled w/ Gold
Experience the ultimate in braking performance with DBA's 5000 Series 2-piece rotor. Designed for high-performance street vehicles, track day, and club racing applications, this rotor combines the benefits of a 4000 Series rotor with the added advantages of a 2-piece design.
The 5000 Series rotor features an aluminum hat (T6061-T6) for lighter weight, improved heat dissipation, and reduced maintenance costs. The rotor also includes National Aerospace Standard (NAS) bolts and crimp nuts, ensuring optimal performance under the most strenuous circumstances.
- Aluminum hat (T6061-T6) for lighter weight and improved heat dissipation
- National Aerospace Standard (NAS) bolts and crimp nuts for optimal performance
- XG-150 High Carbon Alloyed Iron for improved durability
- TSP (Thermal Stability Profiling) for enhanced thermal performance
- Thermo-graphic Paint markings (THGP) for precise temperature monitoring
| Diameter [mm] | 355 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 5 |
| Inner Diameter [mm] | 70.7 |
| Minimum Thickness [mm] | 30 |
| Thickness [mm] | 32 |
| Height [mm] | 45.5 |
| Pitch Circle [mm] | 120.65 |
| Stage | Stage 5 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| Make | Model | Year | Type |
|---|---|---|---|
| Cadillac | XLR | 2004 | Base |
| Cadillac | XLR | 2005 | Base |
| Cadillac | XLR | 2006 | Base |
| Chevrolet | Corvette | 2006 | Z06 |
| Chevrolet | Corvette | 2007 | Z06 |
| Chevrolet | Corvette | 2008 | 427 Limited Edition Z06 |
| Chevrolet | Corvette | 2008 | Z06 |
| Chevrolet | Corvette | 2009 | Z06 |
| Chevrolet | Corvette | 2010 | Grand Sport |
| Chevrolet | Corvette | 2010 | Z06 |
| Chevrolet | Corvette | 2011 | Grand Sport |
| Chevrolet | Corvette | 2011 | Z06 |
| Chevrolet | Corvette | 2011 | Z06 Carbon |
| Chevrolet | Corvette | 2012 | Grand Sport |
| Chevrolet | Corvette | 2012 | Z06 |
| Chevrolet | Corvette | 2013 | Grand Sport |
DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
