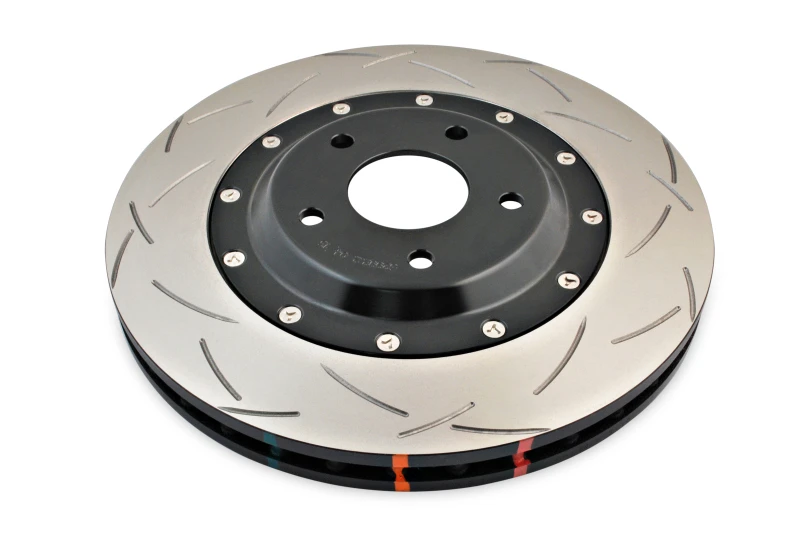

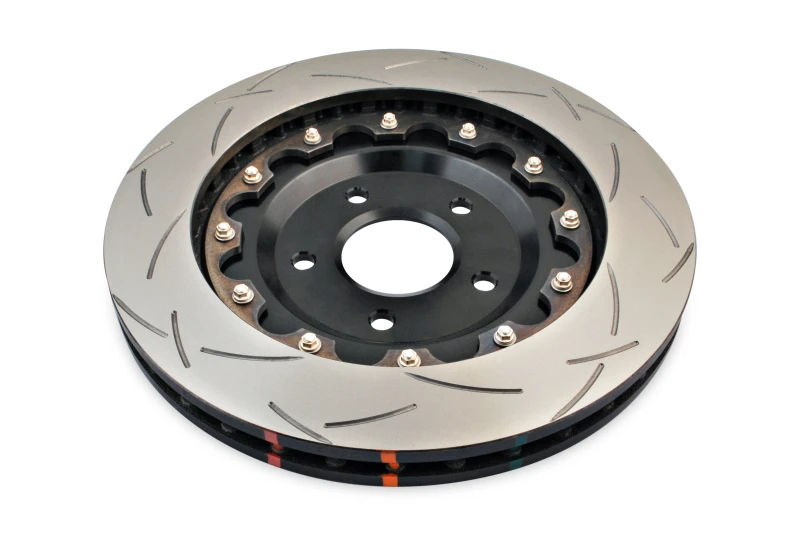

DBA 05-12 Corvette C6 w/Z06 pkg Front Slotted 5000 Series 2 Piece Rotor Assembled w/ Black Hat
Manufacturer:
DBA
Article no.:
52992BLKS
Questions about the product? Write us!
DBA 05-12 Corvette C6 w/Z06 pkg Front Slotted 5000 Series 2 Piece Rotor Assembled w/ Black Hat
Experience the ultimate in braking performance with DBA's 5000 Series 2-piece rotor. Designed for high-performance street vehicles, track day, and club racing, this rotor combines the benefits of DBA's 4000 Series with further weight reduction and improved heat management.
Featuring an aerospace-grade aluminum hat (T6061-T6) and high-carbon cast-iron ring, this rotor is built to withstand the most strenuous driving conditions. The aluminum hat reduces unsprung weight, allowing for uniform radial disc expansion and reduced heat transfer from disc to hub.
- Aluminum hat (T6061-T6) for reduced weight and improved heat management
- National Aerospace Standard (NAS) bolts and crimp nuts for secure fastening
- Replacement disc rotors available for easy maintenance
- XG-150 High Carbon Alloyed Iron for optimal performance
- TSP (Thermal Stability Profiling) for improved heat dissipation
- Thermo-graphic Paint markings (THGP) for temperature monitoring
- Direct replacement suitability for easy installation
- Moisture-proof corrosion protection packaging for extended lifespan
| Diameter [mm] | 355 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 5 |
| Inner Diameter [mm] | 70.7 |
| Minimum Thickness [mm] | 30 |
| Thickness [mm] | 32 |
| Height [mm] | 45.5 |
| Stage | Stage 5 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*60535*00 |
| Make | Model | Year | Type |
|---|---|---|---|
| Cadillac | XLR | 2004 | Base |
| Cadillac | XLR | 2005 | Base |
| Cadillac | XLR | 2006 | Base |
| Chevrolet | Corvette | 2006 | Z06 |
| Chevrolet | Corvette | 2007 | Z06 |
| Chevrolet | Corvette | 2008 | 427 Limited Edition Z06 |
| Chevrolet | Corvette | 2008 | Z06 |
| Chevrolet | Corvette | 2009 | Z06 |
| Chevrolet | Corvette | 2010 | Grand Sport |
| Chevrolet | Corvette | 2010 | Z06 |
| Chevrolet | Corvette | 2011 | Grand Sport |
| Chevrolet | Corvette | 2011 | Z06 |
| Chevrolet | Corvette | 2011 | Z06 Carbon |
| Chevrolet | Corvette | 2012 | Grand Sport |
| Chevrolet | Corvette | 2012 | Z06 |
| Chevrolet | Corvette | 2013 | Grand Sport |
DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
