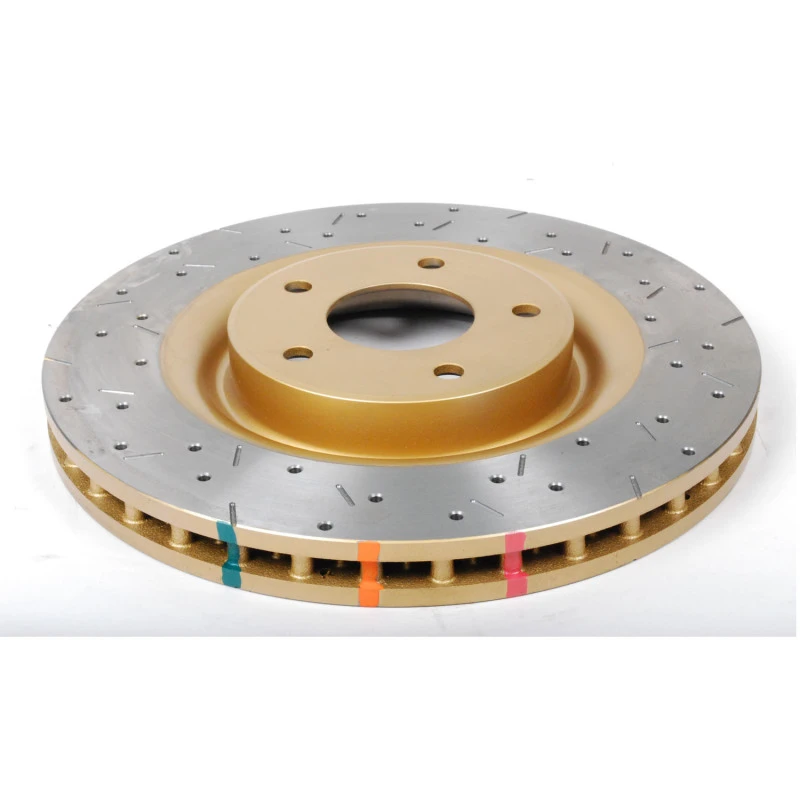

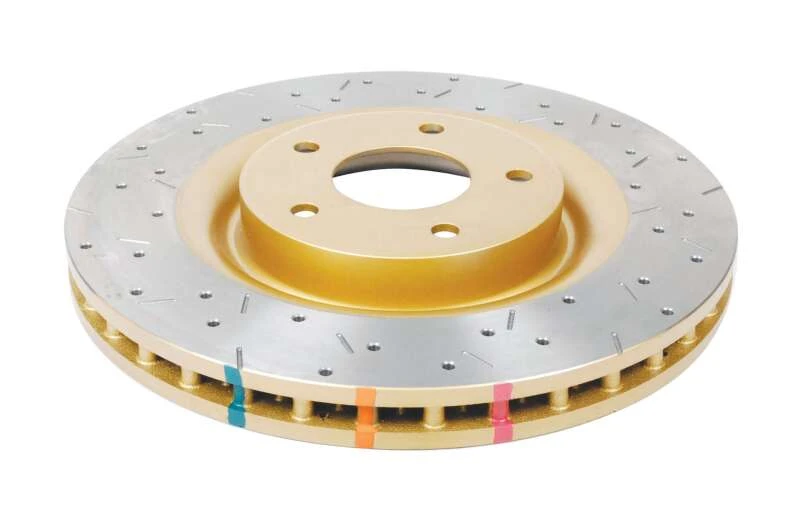

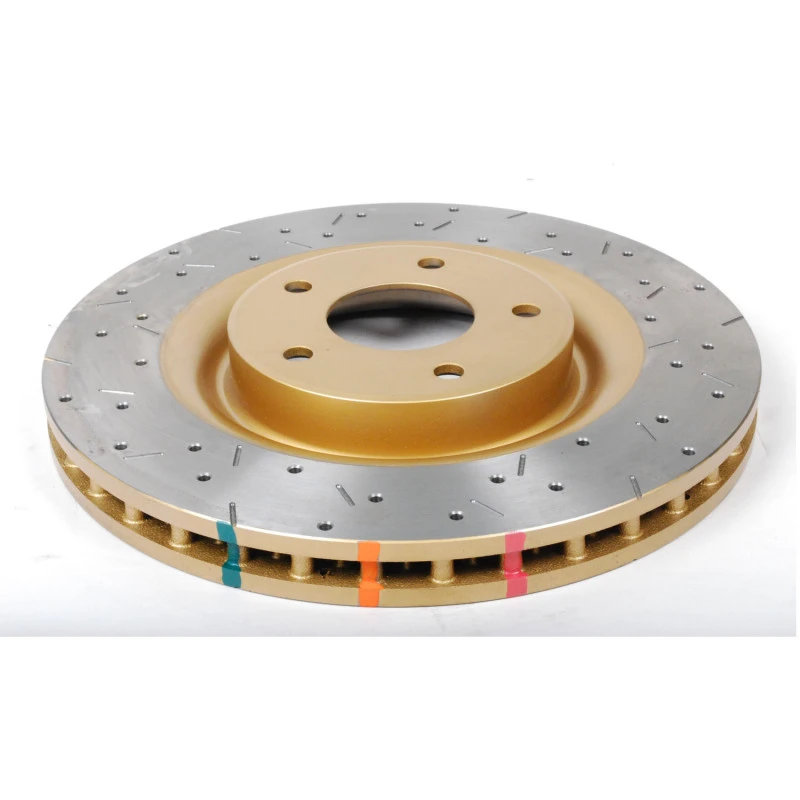

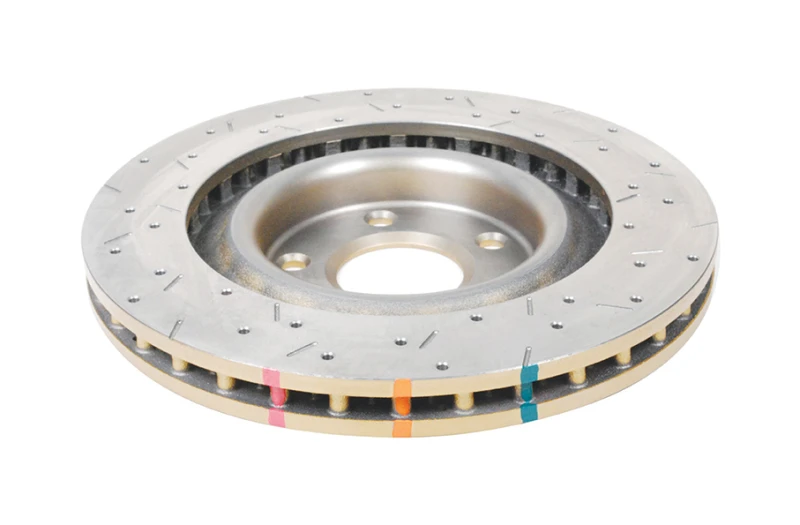

DBA 05-12 Corvette C6 w/Z51 pkg Front Drilled & Slotted 4000 Series Rotor

Manufacturer: DBA

Article no.: 42990XS

€268.94*

Questions about the product? Write us!

Limited availability, delivery time on request

incl. 19% VAT plus shipping costs

DBA 05-12 Corvette C6 w/Z51 pkg Front Drilled & Slotted 4000 Series Rotor

Experience the ultimate in braking performance with DBA's 4000 Series XS rotors. Cast from high-carbon alloyed iron and undergoing Thermal Stability Profiling, these rotors are designed to handle the intense heat and stress generated by repeated braking applications.

Featuring DBA's patented Kangaroo Paw ventilation system, these rotors boast a 30% increase in surface area and a 20% improvement in cooling efficiency compared to traditional straight vane designs. The unique drill and slot pattern provides maximum performance and reduced brake fade.

Kangaroo Paw ventilation system for increased surface area and heat dissipation
Direct replacement suitability for easy installation
CBN (Cubic Boron Nitride) machined turned for reduced Disc Thickness Variation and parallelism
Moisture-proof corrosion protection packaging for extended lifespan

Diameter [mm]	340
Disc Vent	Kangaroo Paw
Number of Holes	5
Inner Diameter [mm]	70.5
Minimum Thickness [mm]	30
Thickness [mm]	32
Height [mm]	45
Stage	Stage 3
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info

Make	Model	Year	Type
Cadillac	XLR	2006	Base
Cadillac	XLR	2006	V
Cadillac	XLR	2007	Base
Cadillac	XLR	2007	V
Cadillac	XLR	2008	Base
Cadillac	XLR	2008	Platinum
Cadillac	XLR	2008	V
Cadillac	XLR	2009	Platinum
Cadillac	XLR	2009	V

DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
