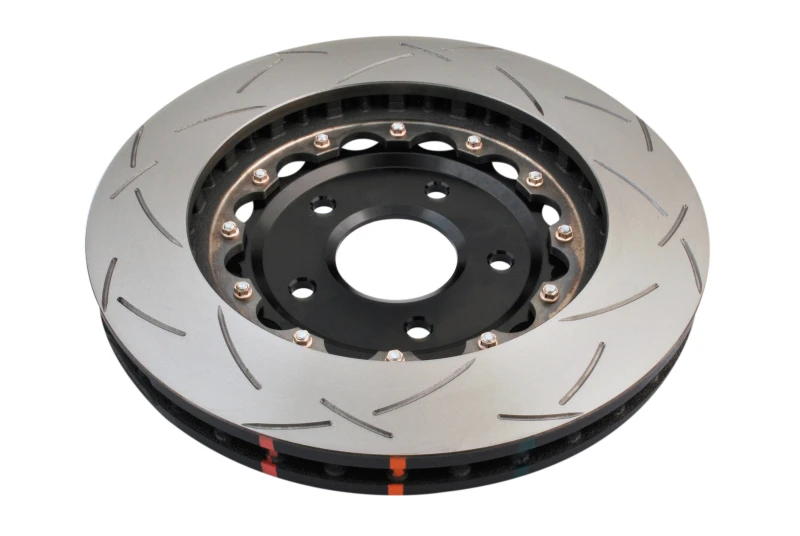

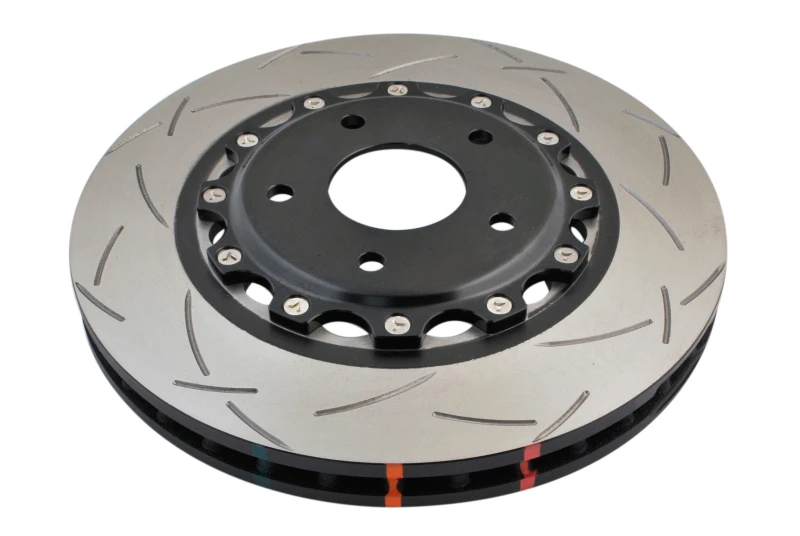

DBA 05-12 Corvette C6 w/Z51 pkg Front Slotted 5000 Series 2 Piece Rotor Assembled w/ Black Hat

Manufacturer: DBA

Article no.: 52990BLKS

€549.78*

Questions about the product? Write us!

Limited availability, delivery time on request

incl. 19% VAT plus shipping costs

DBA 05-12 Corvette C6 w/Z51 pkg Front Slotted 5000 Series 2 Piece Rotor Assembled w/ Black Hat

Experience the ultimate in braking performance with DBA's 5000 Series 2-piece rotor. Designed for high-performance street vehicles, track day, and club racing applications, this rotor combines the benefits of a 4000 Series rotor with the added advantages of a 2-piece design.

Featuring an aerospace-grade aluminum hat (T6061-T6) and a high-carbon cast-iron ring, this rotor provides optimal performance under the most strenuous circumstances. The use of aluminum hats reduces unsprung weight, allowing for uniform radial disc expansion and reduced heat transfer from disc to hub.

Aerospace-grade aluminum hat (T6061-T6)
National Aerospace Standard (NAS) bolts and crimp nuts
Replacement disc rotors available
XG-150 High Carbon Alloyed Iron
TSP (Thermal Stability Profiling)
Thermo-graphic Paint markings (THGP)
Direct replacement suitability
Moisture-proof corrosion protection packaging

Diameter [mm]	340
Disc Vent	Kangaroo Paw
Number of Holes	5
Inner Diameter [mm]	70.7
Minimum Thickness [mm]	30
Thickness [mm]	32
Height [mm]	45.5
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
ECE R90 number	E1190R02/0660512*00

Make	Model	Year	Type
Cadillac	XLR	2006	Base
Cadillac	XLR	2006	V
Cadillac	XLR	2007	Base
Cadillac	XLR	2007	V
Cadillac	XLR	2008	Base
Cadillac	XLR	2008	Platinum
Cadillac	XLR	2008	V
Cadillac	XLR	2009	Platinum
Cadillac	XLR	2009	V

DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
