DBA 05-17 Front 5000 Series Replacement Ring for Subaru WRX STI
€274.89 incl. 19% VAT plus shipping costs
Limited availability, delivery time on request
Questions about the product? Write us!
Article no.:
5654.1
Why Streetstylez?
- Over 20 years of experience in parts import
- 100% genuine brand products – no replicas
- Sales and shipping from Germany – no duties, no hidden fees within EU
Description

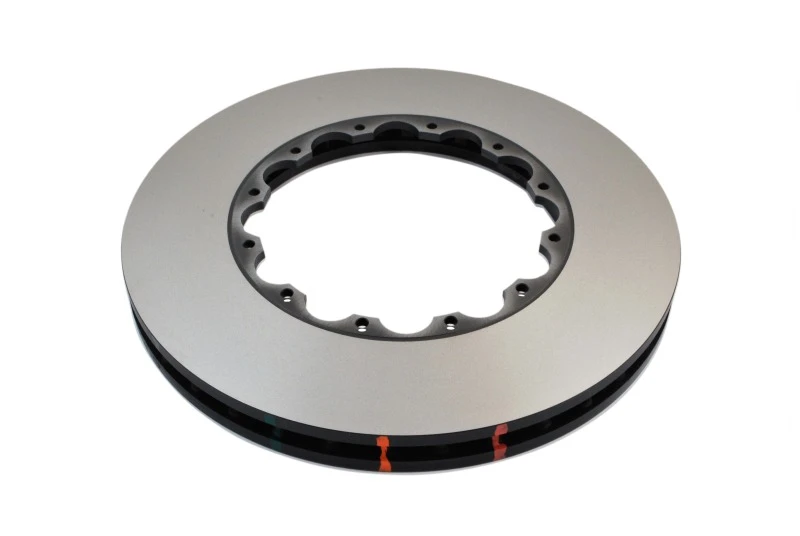

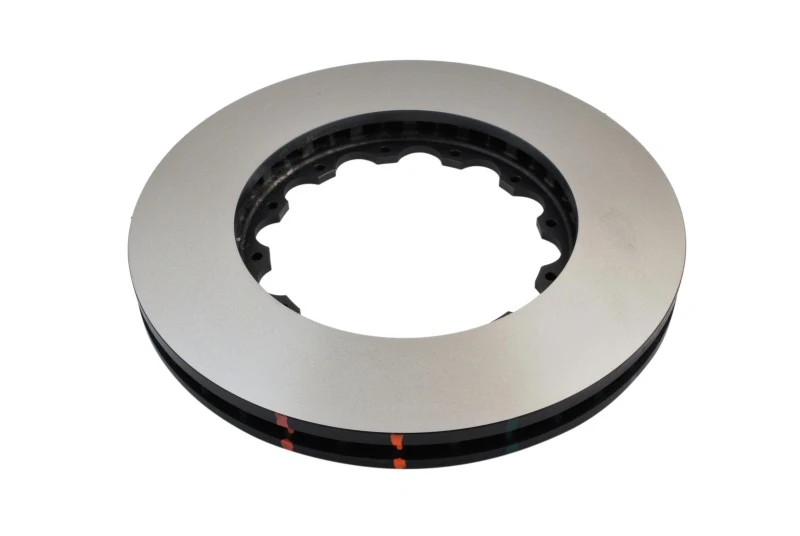

DBA 05-17 Subaru WRX STI Front 5000 Series Replacement Ring
Take your Subaru WRX STI to the next level with the DBA 5000 Series Replacement Ring. As a composite 2-piece direct replacement brake rotor, it combines high carbon cast-iron rings with aerospace-grade aluminum hats for optimal performance under extreme conditions.
| Diameter [mm] | 326 |
| Thickness [mm] | 30 |
| Disc Vent | Kangaroo Paw |
| Annulus [mm] (Maximum useable pad width) | 61 |
| Pitch Circle Diameter (P.C.D.) | 182 |
| Inside Diameter [mm] | 202 |
| Diameter & Number of Bolt Holes [mm] | 6.4 (x12) |
| Air Gap [mm] | 12 |
| Offset [mm] | 0 |
| Flange Inside Diameter [mm] | 166 |
| Flange Thickness [mm] | 6,35 |
| Hole Type | Round Hole |
| Stage | Stage 5 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| Replacement Nuts | Included |
Vehicle Compatibility
- Front - SUBARU/BRZ/2.0 tS 200BHP (2013-) , Brake Pads: DB1678
- Front - SUBARU/Forester/2.5 Turbo STi 320BHP (2004-2008) , Brake Pads: DB1678
- Front - SUBARU/Impreza/2.0 Turbo WRX STi 100 pcd (2002-2005) , Brake Pads: DB1678
- Front - SUBARU/Impreza/2.0 Turbo WRX STi 114 pcd (2005-2006) , Brake Pads: DB1678
- Front - SUBARU/Impreza/2.5 Turbo WRX STi (2006-2007) , Brake Pads: DB1678
- Front - SUBARU/Impreza/2.5 Turbo WRX STi (2007-2012) , Brake Pads: DB1678
- Front - SUBARU/Impreza RB320/2.5 Turbo (2006-2007) , Brake Pads: DB1678
- Front - SUBARU/WRX STi/2.5 Turbo 300BHP (2012-2017) , Brake Pads: DB1678
- Front - TOYOTA/GT86/2.0 TRD 200BHP (2018-) , Brake Pads: DB1678
Manufacturer:
DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
