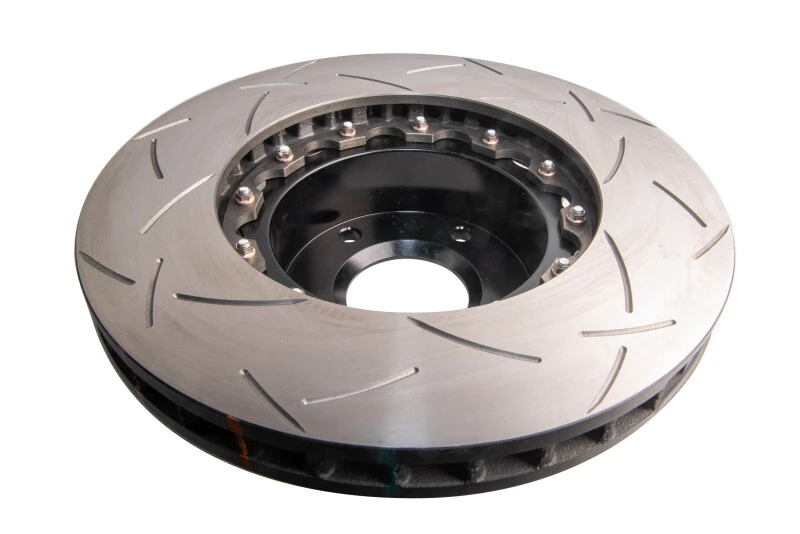

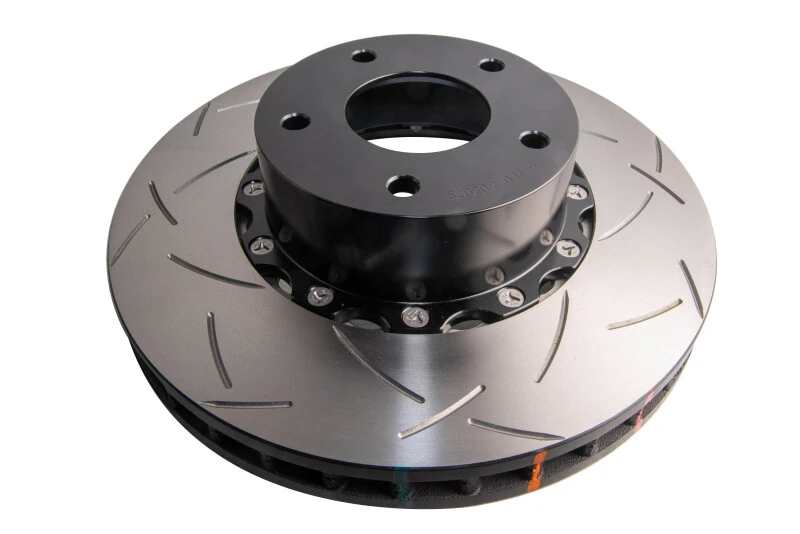

DBA 05 Pontiac GTO Front Slotted 5000 Series 2 Piece Rotor Assembled w/ Black Hat

Manufacturer: DBA

Article no.: 52020BLKS

€504.56*

Limited availability, delivery time on request

DBA 05 Pontiac GTO Front Slotted 5000 Series 2 Piece Rotor Assembled w/ Black Hat

Take your Pontiac GTO to the next level with DBA's 5000 Series 2-piece rotor. Engineered for high-performance street vehicles, track day, and club racing, these rotors combine the benefits of high carbon cast-iron rings with aerospace-grade aluminum hats for optimal performance under strenuous circumstances.

Aluminum hats (T6061-T6) for reduced unsprung weight and improved heat management
National Aerospace Standard (NAS) bolts and crimp nuts for added durability
XG-150 High Carbon Alloyed Iron for improved thermal stability
TSP (Thermal Stability Profiling) for consistent braking performance
Thermo-graphic Paint markings (THGP) for temperature monitoring

Diameter [mm]	320
Disc Vent	Kangaroo Paw
Number of Holes	5
Inner Diameter [mm]	71.6
Minimum Thickness [mm]	30
Thickness [mm]	32
Height [mm]	83
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
ECE R90 number	E1190R02/0660514*00

Make	Model	Year	Type
Pontiac	GTO	2005	Base
Pontiac	GTO	2006	Base

DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
