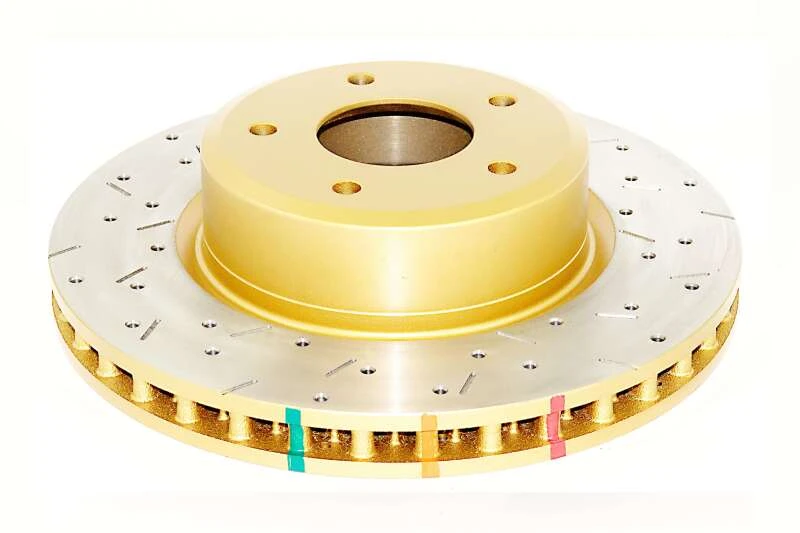

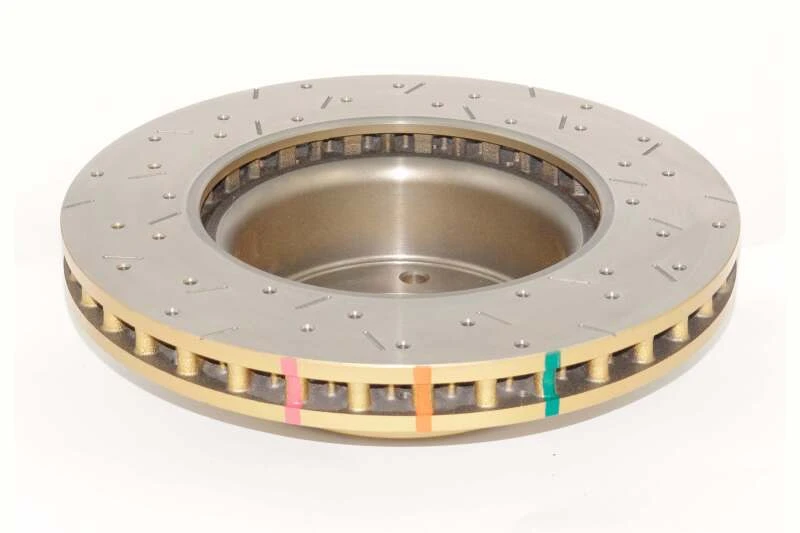

DBA 05 Pontiac GTO Front Slotted & Drilled 4000 Series Rotor
Take your braking performance to the next level with DBA's 4000 Series XS rotors, featuring the best technology and materials for maximum performance. Made from high-carbon and heat-treated iron, these rotors are designed to handle intense braking applications with ease.
With DBA's patented Kangaroo Paw ventilation system, you can expect up to a 30% increase in surface area and a 20% improvement in cooling efficiency compared to traditional straight vane designs. This results in increased braking effectiveness and reduced brake fade.
- Kangaroo Paw ventilation system for improved heat dissipation
- Direct replacement suitability for easy installation
- CBN (Cubic Boron Nitride) machined turned for lower Disc Thickness Variation and parallelism
- Moisture-proof corrosion protection packaging
| Diameter [mm] | 320 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 5 |
| Inner Diameter [mm] | 71.6 |
| Minimum Thickness [mm] | 30 |
| Thickness [mm] | 32 |
| Height [mm] | 83 |
| Stage | Stage 3 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| Make | Model | Year | Type |
|---|---|---|---|
| Pontiac | GTO | 2005 | Base |
| Pontiac | GTO | 2006 | Base |
DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
