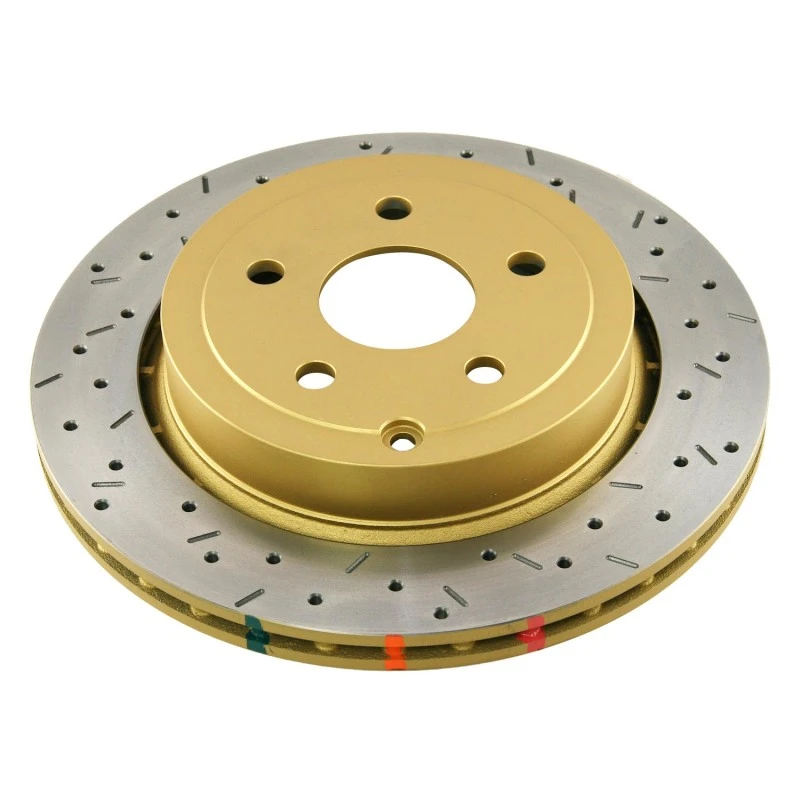

DBA 09 Pontiac G8 V8 6.0L Rear Drilled & Slotted 4000 Series Rotor

Manufacturer: DBA

Article no.: 42029XS

€268.94*

Limited availability, delivery time on request

DBA 09 Pontiac G8 V8 6.0L Rear Drilled & Slotted 4000 Series Rotor

Upgrade your Pontiac G8's braking performance with DBA's 4000 Series XS rotors, featuring the best technology and materials for maximum performance. Made from high carbon and heat-treated iron, these rotors are designed to handle the increased stress and heat generated under intense braking applications.

With DBA's patented Kangaroo Paw ventilation system, these rotors achieve up to a 30% increase in surface area and 20% improvement in cooling efficiency compared to traditional straight vane designs. The unique drill and slot pattern makes for the perfect direct replacement rotor.

Kangaroo Paw ventilation for increased surface area and heat dissipation
Direct replacement suitability
CBN machined turned for lower Disc Thickness Variation and parallelism
Moisture-proof corrosion protection packaging

Diameter [mm]	324
Disc Vent	Kangaroo Paw
Number of Holes	5
Inner Diameter [mm]	67.4
Minimum Thickness [mm]	20
Thickness [mm]	22
Height [mm]	56.1
Stage	Stage 3
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info

Make	Model	Year	Type
Chevrolet	Caprice	2011	PPV
Chevrolet	Caprice	2012	PPV
Chevrolet	Caprice	2013	PPV
Chevrolet	Caprice	2014	PPV
Pontiac	G8	2008	GT
Pontiac	G8	2009	GT
Pontiac	G8	2009	GXP

DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
