DBA 10-20 Hyundai Santa Fe Rear 4000 Series Drilled Rotor

Manufacturer: DBA

Article no.: 42483XD

€260.61*

Limited availability, delivery time on request

DBA 10-20 Hyundai Santa Fe Rear 4000 Series Drilled Rotor

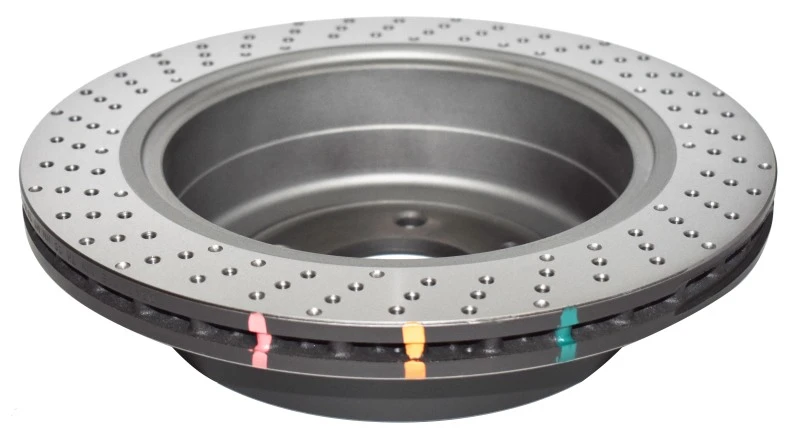

Experience the ultimate in braking performance with DBA's 4000 Series XD variant, featuring a non-directional cross-drilled and dimpled rotor design. The XD finish provides additional cooling benefits and enhanced sports looks.

DBA's 4000 Series rotors are cast from XG-150 high carbon alloyed iron and undergo Thermal Stability Profiling, ensuring they can handle the increased stress and heat generated under intense braking applications.

XG-150 High Carbon Alloyed Iron
TSP (Thermal Stability Profiling)
Thermo-graphic paint markings (THGP)
Direct replacement suitability
Moisture proof corrosion protection packaging

Diameter [mm]	302
Disc Vent	VENTED
Number of Holes	5
Inner Diameter [mm]	69.03
Minimum Thickness [mm]	20
Thickness [mm]	22
Height [mm]	71.50
Stage	Stage 3
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info

This product has not yet been assigned to any vehicle. We are working to ensure that this changes as soon as possible. Please contact us if you have any questions.

DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
