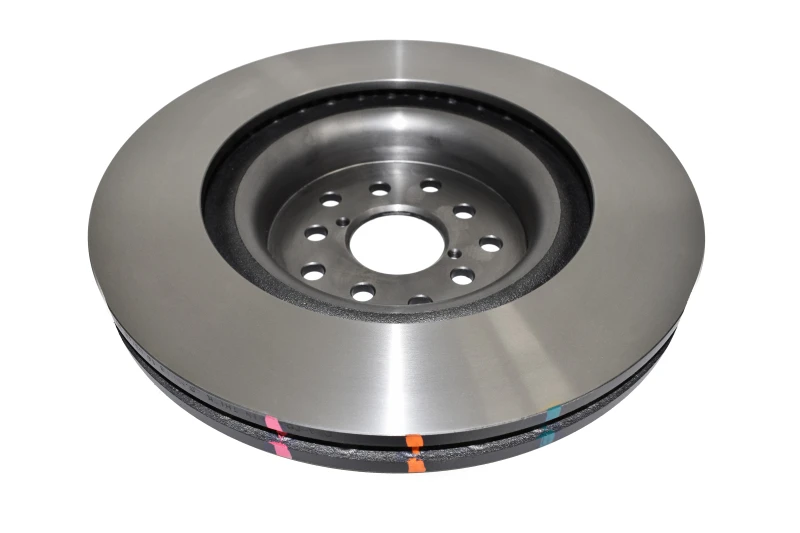

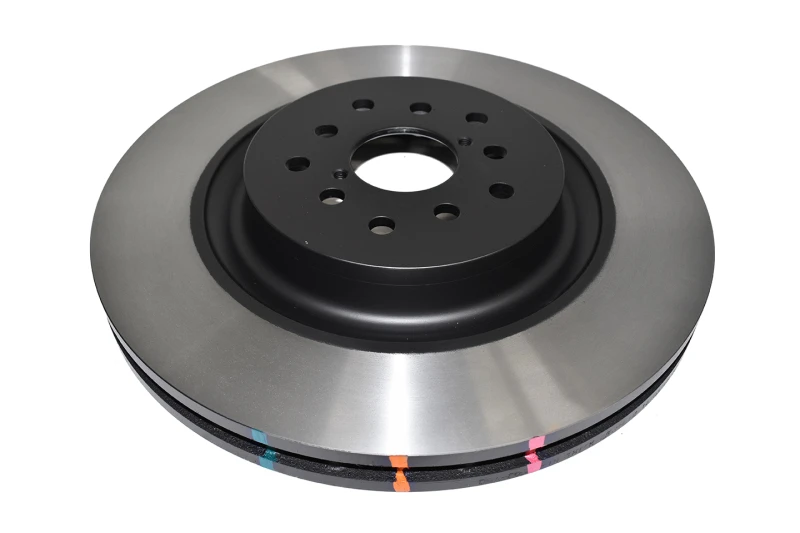

DBA 4000 Series Standard Front Brake Rotor for 17-19 Subaru STI w/ 6 Piston Brembo Calipers

Manufacturer: DBA

Article no.: 43050-10

€223.72*

Available at US supplier, delivery time: 7-10 working days (EU +3)

DBA 17-19 Subaru STI w/ 6 Piston Brembo Calipers 4000 Series Standard Front Brake Rotor

Take your Subaru STI's braking performance to the next level with DBA's 4000 Series Standard Front Brake Rotor. Cast from high-carbon alloyed iron and undergoing Thermal Stability Profiling, this rotor is designed to handle intense braking applications with ease.

Featuring DBA's patented Kangaroo Paw ventilation system, this rotor achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency compared to traditional straight vane designs.

XG-150 high-carbon alloyed iron construction for improved durability
Thermal Stability Profiling for enhanced heat management
Kangaroo Paw ventilation system for improved cooling efficiency
Direct replacement suitability for easy installation
Moisture-proof corrosion protection packaging for extended lifespan

Diameter [mm]	340
Disc Vent	Kangaroo Paw
Number of Holes	5
Inner Diameter [mm]	58.02
Minimum Thickness [mm]	28
Thickness [mm]	30
Height [mm]	53.00
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
ECE R90 number	E1190R02/0659746*00

Front - SUBARU/WRX STi/2.5 Turbo 300BHP (2017-2021) Brake Pads: DB1845, Brake Caliper: Brembo

DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
