DBA for 12+ Subaru/Scion BRZ/FR-S (AU Spec) 10 Lug Slot Rear Drilled & Slotted 4000 Series Rotor
Manufacturer:
DBA
Article no.:
42659XS-10
Questions about the product? Write us!

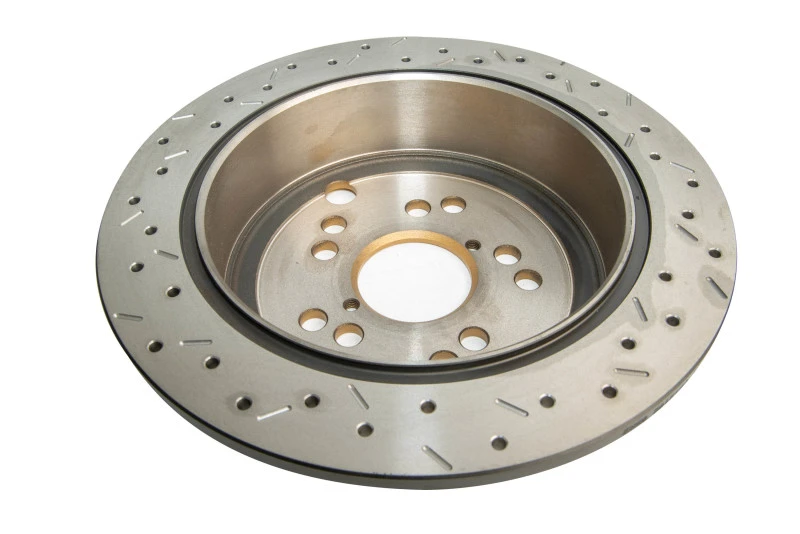

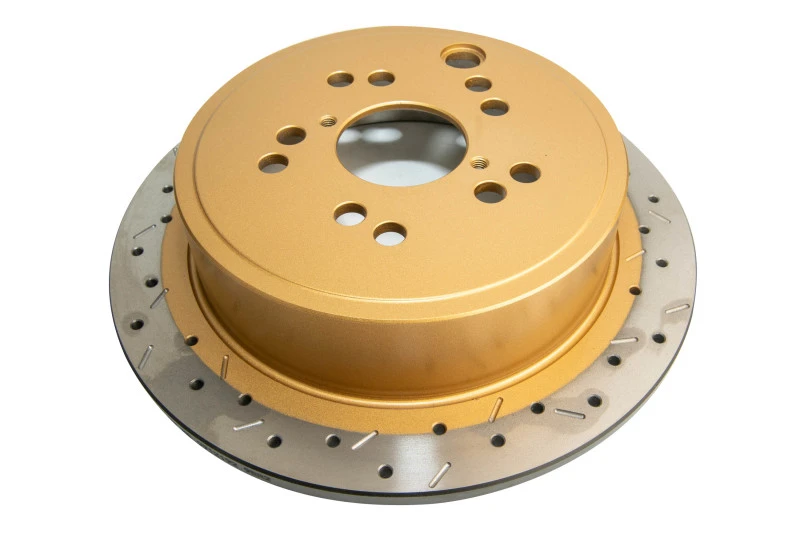

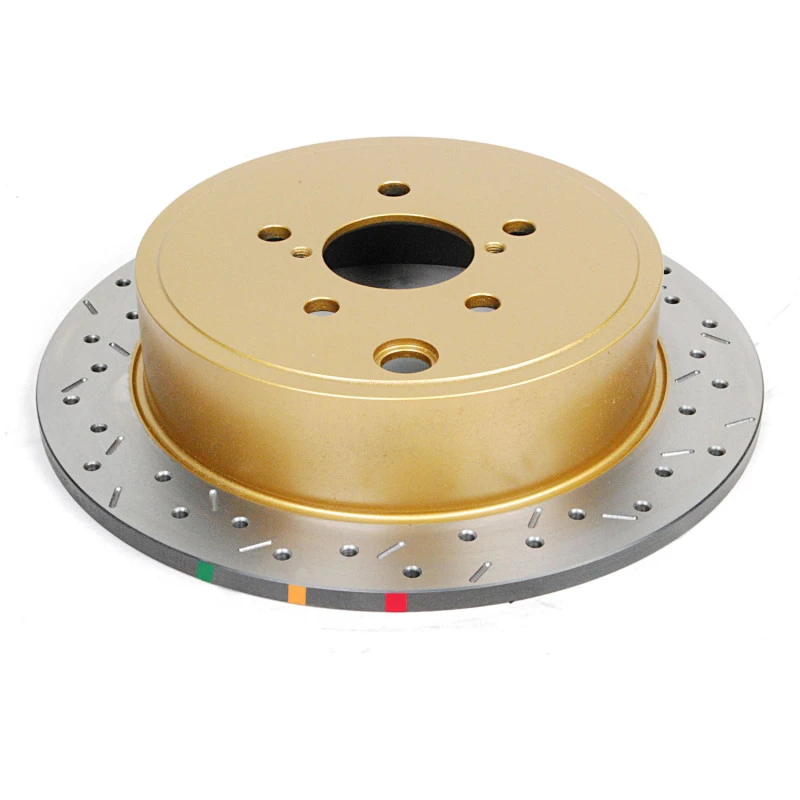

DBA 12+ Subaru/Scion BRZ/FR-S (AU Spec) 10 Lug Slot Rear Drilled & Slotted 4000 Series Rotor
Experience the ultimate in braking performance with DBA's 4000 Series XS rotors. Engineered with high carbon and heat-treated iron, these rotors are designed to handle the most intense braking applications. Featuring DBA's patented Kangaroo Paw ventilation, these rotors achieve up to a 30% increase in surface area and 20% improvement in cooling efficiency compared to traditional straight vane designs.
- Kangaroo Paw ventilation for increased surface area and heat dissipation
- Direct replacement suitability for easy installation
- CBN (Cubic Boron Nitride) machined turned for reduced brake shudder
- Moisture-proof corrosion protection packaging for extended lifespan
| Diameter [mm] | 286 |
| Number of Holes | 10 |
| Inner Diameter [mm] | 100 & 114.3 |
| Minimum Thickness [mm] | 8,5 |
| Thickness [mm] | 10 |
| Height [mm] | 63.5 |
| Pitch Circle [mm] | 58 |
| Stage | Stage 3 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| Make | Model | Year | Type |
|---|---|---|---|
| Subaru | Forester | 2009 | X |
| Subaru | Forester | 2009 | X Limited |
| Subaru | Forester | 2009 | X Premium |
| Subaru | Forester | 2009 | XT |
| Subaru | Forester | 2009 | XT Limited |
| Subaru | Forester | 2010 | X |
| Subaru | Forester | 2010 | X Limited |
| Subaru | Forester | 2010 | X Premium |
| Subaru | Forester | 2010 | XT Limited |
| Subaru | Forester | 2010 | XT Premium |
| Subaru | Forester | 2011 | X |
| Subaru | Forester | 2011 | X Limited |
| Subaru | Forester | 2011 | X Premium |
| Subaru | Forester | 2011 | X Touring |
| Subaru | Forester | 2011 | XT Premium |
| Subaru | Forester | 2011 | XT Touring |
| Subaru | Forester | 2012 | X |
| Subaru | Forester | 2012 | X Limited |
| Subaru | Forester | 2012 | X Premium |
| Subaru | Forester | 2012 | X Touring |
| Subaru | Forester | 2012 | XT Premium |
| Subaru | Forester | 2012 | XT Touring |
| Subaru | Forester | 2013 | X |
| Subaru | Forester | 2013 | X Limited |
| Subaru | Forester | 2013 | X Premium |
| Subaru | Forester | 2013 | X Touring |
| Subaru | Forester | 2013 | XT Premium |
| Subaru | Forester | 2013 | XT Touring |
| Subaru | Impreza | 2008 | 2.5i |
| Subaru | Impreza | 2008 | Outback Sport |
| Subaru | Impreza | 2008 | WRX |
| Subaru | Impreza | 2008 | WRX STI |
| Subaru | Impreza | 2009 | WRX |
| Subaru | Impreza | 2009 | WRX Premium |
| Subaru | Impreza | 2010 | WRX |
| Subaru | Impreza | 2010 | WRX Limited |
| Subaru | Impreza | 2010 | WRX Premium |
| Subaru | Impreza | 2011 | WRX |
| Subaru | Impreza | 2011 | WRX Limited |
| Subaru | Impreza | 2011 | WRX Premium |
| Subaru | Impreza | 2012 | WRX |
| Subaru | Impreza | 2012 | WRX Limited |
| Subaru | Impreza | 2012 | WRX Premium |
| Subaru | Impreza | 2013 | WRX |
| Subaru | Impreza | 2013 | WRX Limited |
| Subaru | Impreza | 2013 | WRX Premium |
| Subaru | Impreza | 2014 | WRX |
| Subaru | Impreza | 2014 | WRX Limited |
| Subaru | Impreza | 2014 | WRX Premium |
| Subaru | Legacy | 2008 | 2.5i |
| Subaru | Legacy | 2008 | 2.5i Limited |
| Subaru | Legacy | 2008 | 2.5i Special Edition |
| Subaru | Legacy | 2009 | 2.5i |
| Subaru | Legacy | 2009 | 2.5i Limited |
| Subaru | Legacy | 2009 | 2.5i Special Edition |
| Subaru | Legacy | 2010 | 2.5GT |
| Subaru | Legacy | 2010 | 2.5i |
| Subaru | Legacy | 2010 | 2.5i Limited |
| Subaru | Legacy | 2010 | 2.5i Premium |
| Subaru | Legacy | 2011 | 2.5GT |
| Subaru | Legacy | 2011 | 2.5i |
| Subaru | Legacy | 2011 | 2.5i Limited |
| Subaru | Legacy | 2011 | 2.5i Premium |
| Subaru | Outback | 2010 | 2.5i |
| Subaru | Outback | 2010 | 2.5i Limited |
| Subaru | Outback | 2010 | 2.5i Premium |
| Subaru | Outback | 2011 | 2.5i |
| Subaru | Outback | 2011 | 2.5i Limited |
| Subaru | Outback | 2011 | 2.5i Premium |
| Subaru | Outback | 2012 | 2.5i |
| Subaru | Outback | 2012 | 2.5i Limited |
| Subaru | Outback | 2012 | 2.5i Premium |
| Subaru | Outback | 2013 | 2.5i |
| Subaru | Outback | 2013 | 2.5i Limited |
| Subaru | Outback | 2013 | 2.5i Premium |
| Subaru | WRX | 2015 | Base |
| Subaru | WRX | 2015 | Limited |
| Subaru | WRX | 2016 | Base |
| Subaru | WRX | 2016 | Limited |
| Subaru | WRX | 2016 | Premium |
| Subaru | WRX | 2017 | Base |
| Subaru | WRX | 2017 | Limited |
| Subaru | WRX | 2017 | Premium |
DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
