Edelbrock Cylinder Head Victor Jr SBC 23 Deg 220cc Complete for Hydraulic Roller Cam
€2,257.43 incl. 19% VAT plus shipping costs
Limited availability, delivery time on request
Why Streetstylez?
- Over 20 years of experience in parts import
- 100% genuine brand products – no replicas
- Sales and shipping from Germany – no duties, no hidden fees within EU
Description

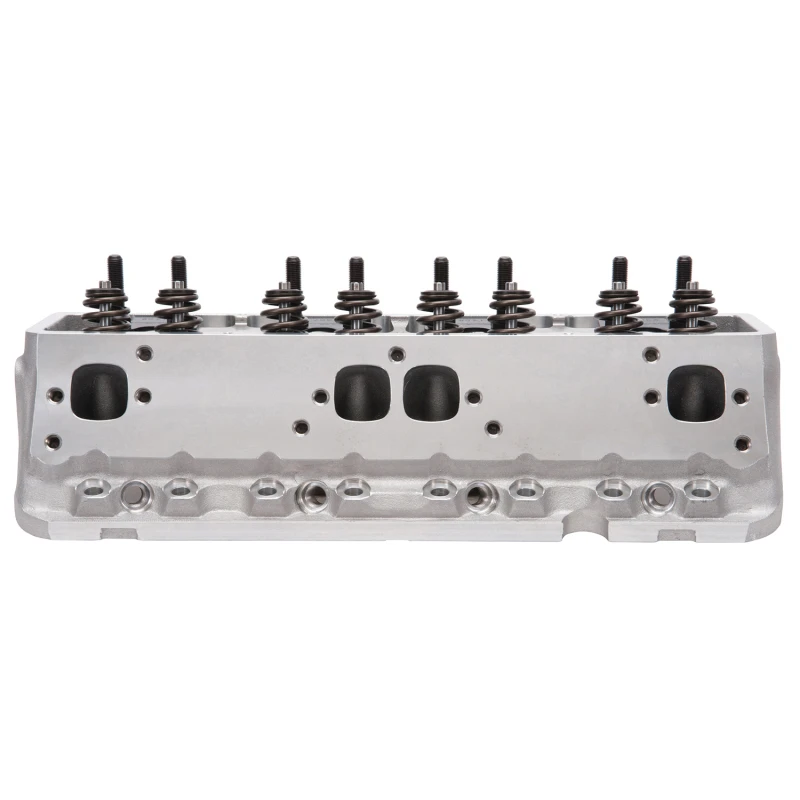

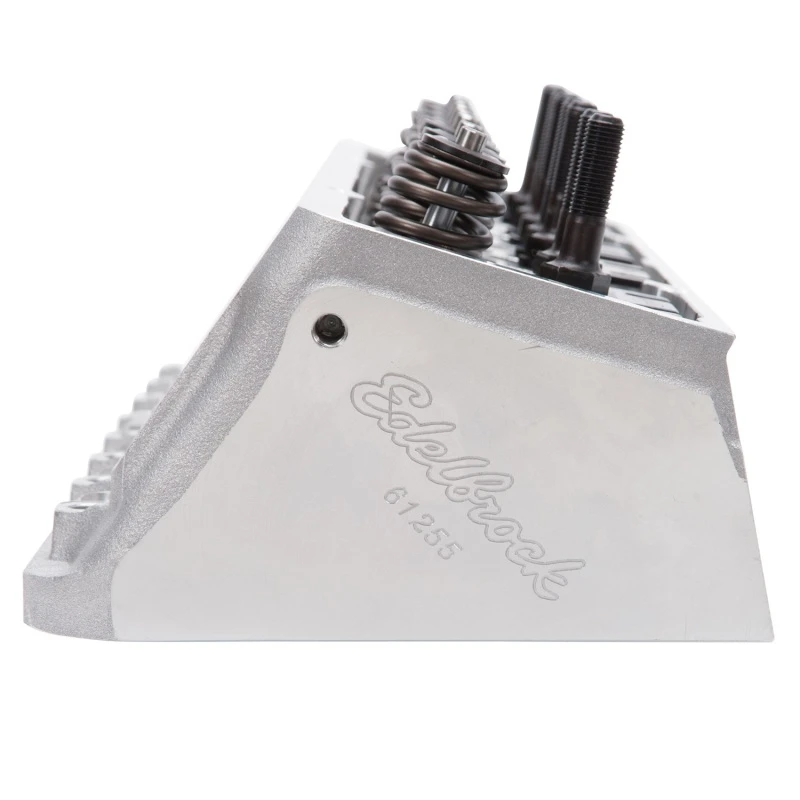

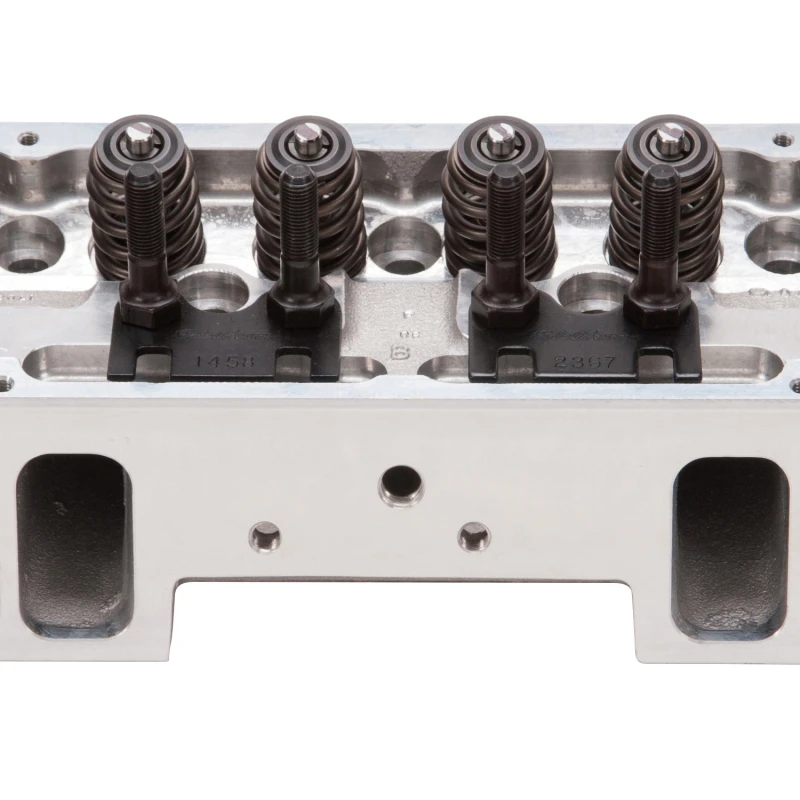

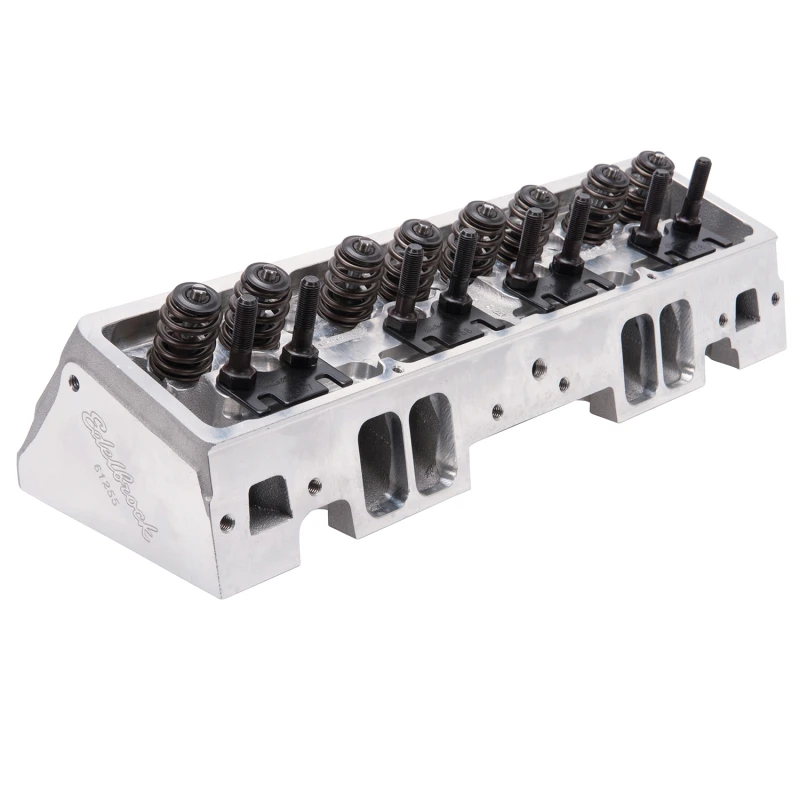

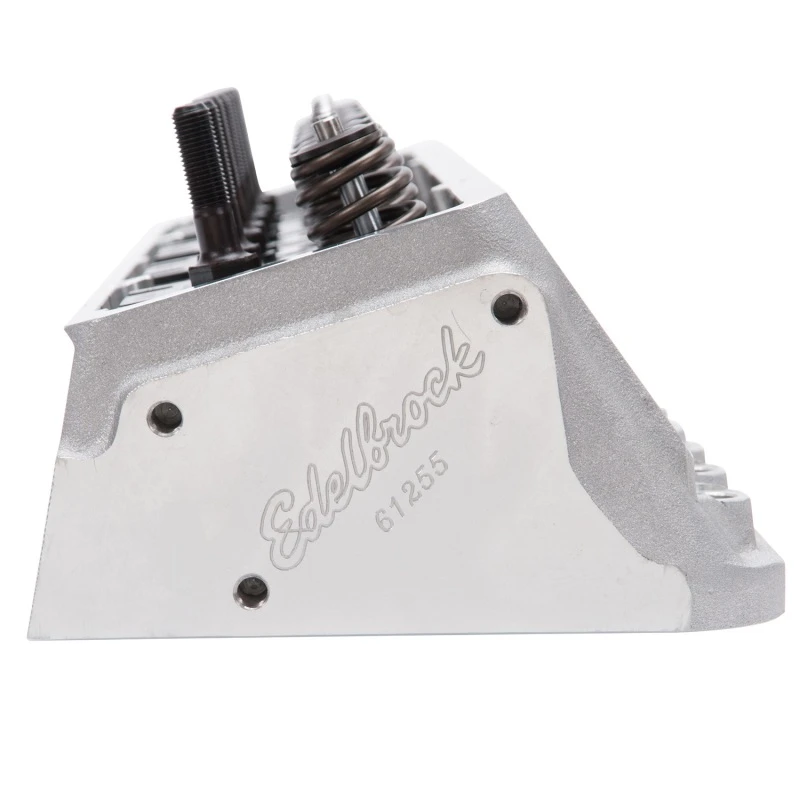

Edelbrock Cylinder Head Victor Jr SBC 23 Deg 220cc Complete for Hydraulic Roller Cam
Take your small-block Chevy to the next level with the Edelbrock Victor Jr. 23° 220 cylinder head. With its 64cc combustion chamber, this head yields around 10:1 compression ratio in a typical flat-top application and about 12.5:1 when used with some of the most common 12cc dome pistons.

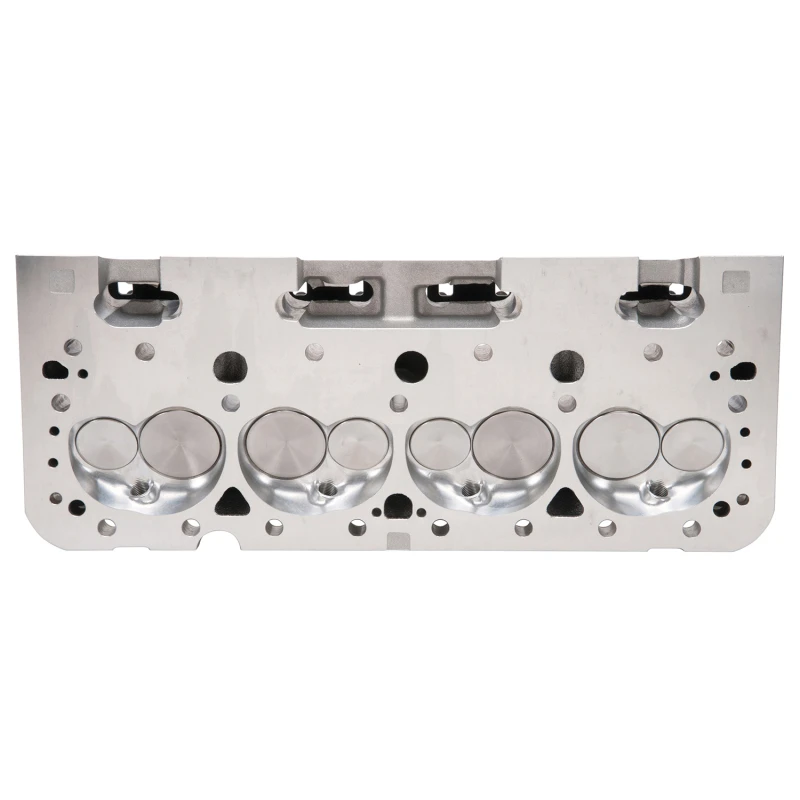

One of the key features of the Victor Jr. 23° 220 cylinder head is the CNC machined chambers and bowls, which result in consistency and improved performance. They also feature angled spark plug holes and maintain the stock 23° valve angle as well as the intake flange bolt pattern for use with 1986 and earlier intake manifolds.
- Finish: Satin
- Designed for use with Hydraulic Roller camshafts
- Combustion chamber volume: 64cc
- Intake runner volume: 220cc
- Exhaust runner volume: 85cc
- Intake valve diameter: 2.10"
- Exhaust valve diameter: 1.60"
- Valve stem diameter: 5/16"
- Valve guides: Manganese bronze
- Deck thickness: 11/16"
- Valve spring diameter: 1.55"
- Valve spring maximum lift:.630"
- Rocker stud: 7/16"
- Guide plate: Hardened steel
- Pushrod diameter: 5/16"
- Valve angle: 23°
- Exhaust port location: Raised.300"
- Spark plug fitment: 14mm x.750 reach, gasket seat
