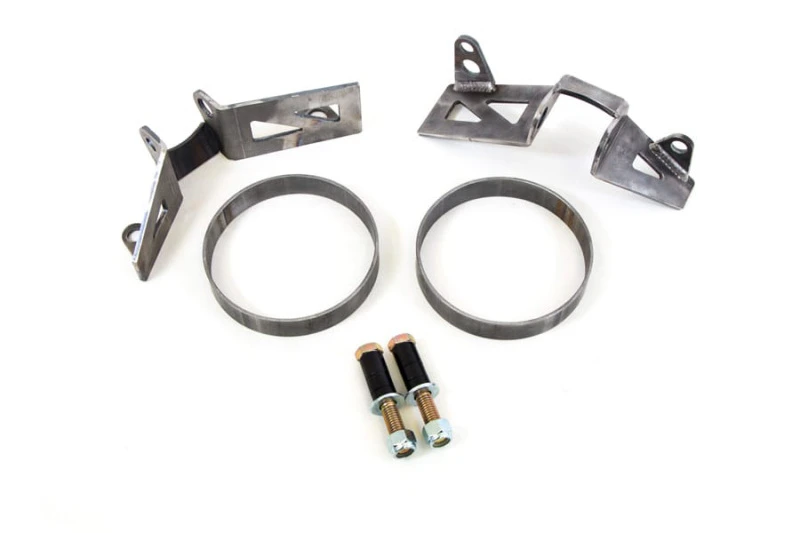

UMI Performance 70-81 GM F-Body Extended Coilover Mount Front
Elevate your 1970-1981 GM F-Body's suspension with UMI Performance's extended coilover mount. Designed for competition use, this weld-in upper coilover mount kit is built to withstand the demands of racing.
Made entirely in the USA, this kit features strong 3/16" laser-cut construction, a quick-align mounting bolt, and a 5-1/2" reinforcement ring. The included templates make trimming the frame a breeze.
- Strong laser-cut 3/16" construction
- Quick-align bolt system with sleeves for 1" and 1-1/4" width shocks
- 5-1/2" reinforcement and trim ring included

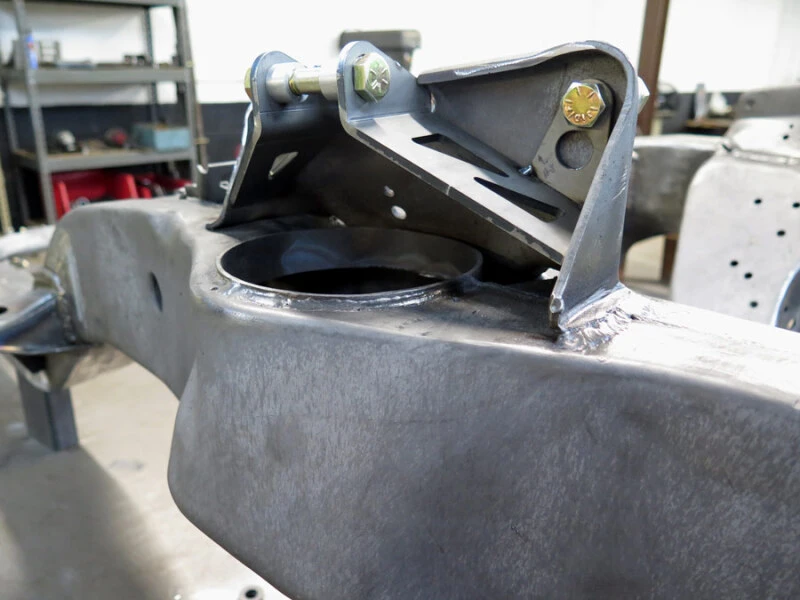

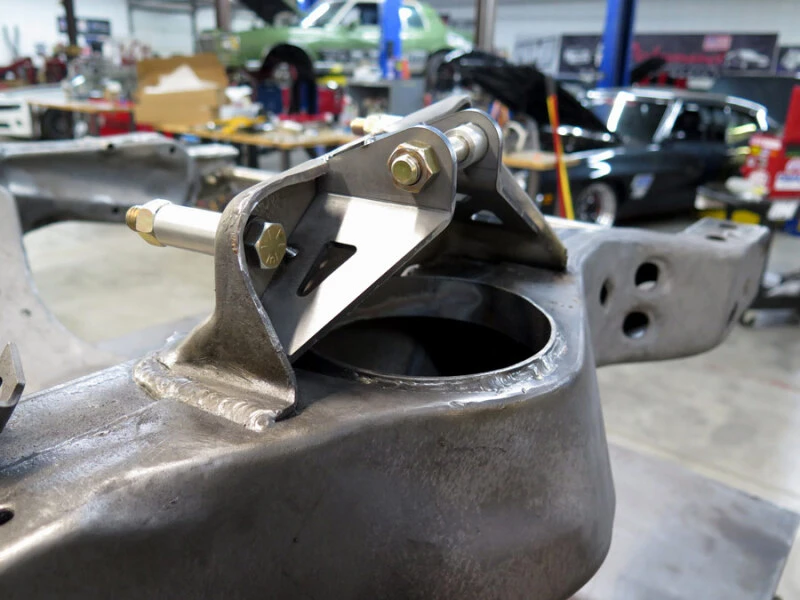

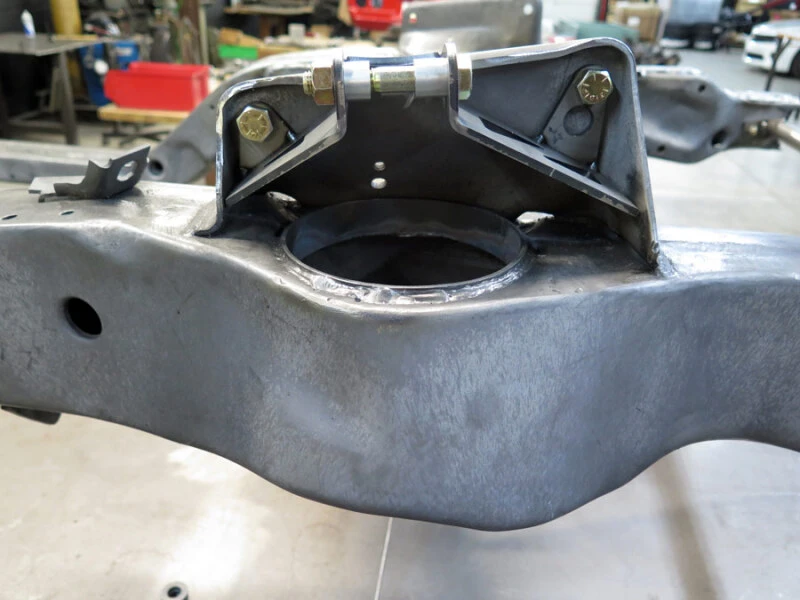

- Weld-in upper extended coilover mount
- Excellent pairing with UMI P/N 2655 adjustable lower a-arm
Professional installation is recommended, as heavy fabrication is required. UMI Afco and Viking shocks are available as a direct bolt-in, and other brands can fit with proper measurement.
| Make | Model | Year | Type |
|---|---|---|---|
| Chevrolet | Camaro | 1970 | Base |
| Chevrolet | Camaro | 1970 | RS |
| Chevrolet | Camaro | 1970 | SS |
| Chevrolet | Camaro | 1970 | Z28 |
| Chevrolet | Camaro | 1971 | Base |
| Chevrolet | Camaro | 1971 | RS |
| Chevrolet | Camaro | 1971 | SS |
| Chevrolet | Camaro | 1971 | Z28 |
| Chevrolet | Camaro | 1972 | Base |
| Chevrolet | Camaro | 1972 | RS |
| Chevrolet | Camaro | 1972 | SS |
| Chevrolet | Camaro | 1972 | Z28 |
| Chevrolet | Camaro | 1973 | Base |
| Chevrolet | Camaro | 1973 | LT |
| Chevrolet | Camaro | 1973 | RS |
| Chevrolet | Camaro | 1973 | Z28 |
| Chevrolet | Camaro | 1974 | Base |
| Chevrolet | Camaro | 1974 | LT |
| Chevrolet | Camaro | 1974 | Z28 |
| Chevrolet | Camaro | 1975 | Base |
| Chevrolet | Camaro | 1975 | LT |
| Chevrolet | Camaro | 1975 | RS |
| Chevrolet | Camaro | 1976 | Base |
| Chevrolet | Camaro | 1976 | LT |
| Chevrolet | Camaro | 1976 | LT Rally Sport |
| Chevrolet | Camaro | 1976 | Rally Sport |
| Chevrolet | Camaro | 1977 | Base |
| Chevrolet | Camaro | 1977 | LT |
| Chevrolet | Camaro | 1977 | LT Rally Sport |
| Chevrolet | Camaro | 1977 | Rally Sport |
| Chevrolet | Camaro | 1977 | Z28 |
| Chevrolet | Camaro | 1978 | Base |
| Chevrolet | Camaro | 1978 | LT |
| Chevrolet | Camaro | 1978 | LT Rally Sport |
| Chevrolet | Camaro | 1978 | Rally Sport |
| Chevrolet | Camaro | 1978 | Z28 |
| Chevrolet | Camaro | 1979 | Base |
| Chevrolet | Camaro | 1979 | Berlinetta |
| Chevrolet | Camaro | 1979 | Rally Sport |
| Chevrolet | Camaro | 1979 | Z28 |
| Chevrolet | Camaro | 1980 | Base |
| Chevrolet | Camaro | 1980 | Berlinetta |
| Chevrolet | Camaro | 1980 | Rally Sport |
| Chevrolet | Camaro | 1980 | Z28 |
| Chevrolet | Camaro | 1981 | Berlinetta |
| Chevrolet | Camaro | 1981 | Sport |
| Chevrolet | Camaro | 1981 | Z28 |
| Pontiac | Firebird | 1970 | Base |
| Pontiac | Firebird | 1970 | Esprit |
| Pontiac | Firebird | 1970 | Formula |
| Pontiac | Firebird | 1970 | Trans Am |
| Pontiac | Firebird | 1971 | Base |
| Pontiac | Firebird | 1971 | Esprit |
| Pontiac | Firebird | 1971 | Formula |
| Pontiac | Firebird | 1971 | Trans Am |
| Pontiac | Firebird | 1972 | Base |
| Pontiac | Firebird | 1972 | Esprit |
| Pontiac | Firebird | 1972 | Formula |
| Pontiac | Firebird | 1972 | Trans Am |
| Pontiac | Firebird | 1973 | Base |
| Pontiac | Firebird | 1973 | Esprit |
| Pontiac | Firebird | 1973 | Formula |
| Pontiac | Firebird | 1973 | Trans Am |
| Pontiac | Firebird | 1974 | Base |
| Pontiac | Firebird | 1974 | Esprit |
| Pontiac | Firebird | 1974 | Formula |
| Pontiac | Firebird | 1974 | Trans Am |
| Pontiac | Firebird | 1975 | Base |
| Pontiac | Firebird | 1975 | Esprit |
| Pontiac | Firebird | 1975 | Formula |
| Pontiac | Firebird | 1975 | Trans Am |
| Pontiac | Firebird | 1976 | Base |
| Pontiac | Firebird | 1976 | Esprit |
| Pontiac | Firebird | 1976 | Formula |
| Pontiac | Firebird | 1976 | Trans Am |
| Pontiac | Firebird | 1977 | Base |
| Pontiac | Firebird | 1977 | Esprit |
| Pontiac | Firebird | 1977 | Formula |
| Pontiac | Firebird | 1977 | Trans Am |
| Pontiac | Firebird | 1978 | Base |
| Pontiac | Firebird | 1978 | Esprit |
| Pontiac | Firebird | 1978 | Formula |
| Pontiac | Firebird | 1978 | Trans Am |
| Pontiac | Firebird | 1979 | Base |
| Pontiac | Firebird | 1979 | Esprit |
| Pontiac | Firebird | 1979 | Formula |
| Pontiac | Firebird | 1979 | Trans Am |
| Pontiac | Firebird | 1980 | Base |
| Pontiac | Firebird | 1980 | Esprit |
| Pontiac | Firebird | 1980 | Formula |
| Pontiac | Firebird | 1980 | Trans Am |
| Pontiac | Firebird | 1981 | Base |
| Pontiac | Firebird | 1981 | Esprit |
| Pontiac | Firebird | 1981 | Formula |
| Pontiac | Firebird | 1981 | Trans Am |
