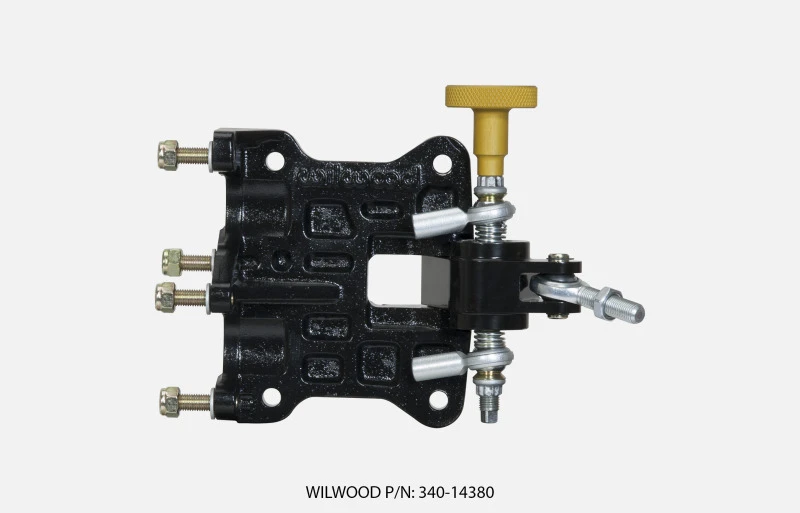

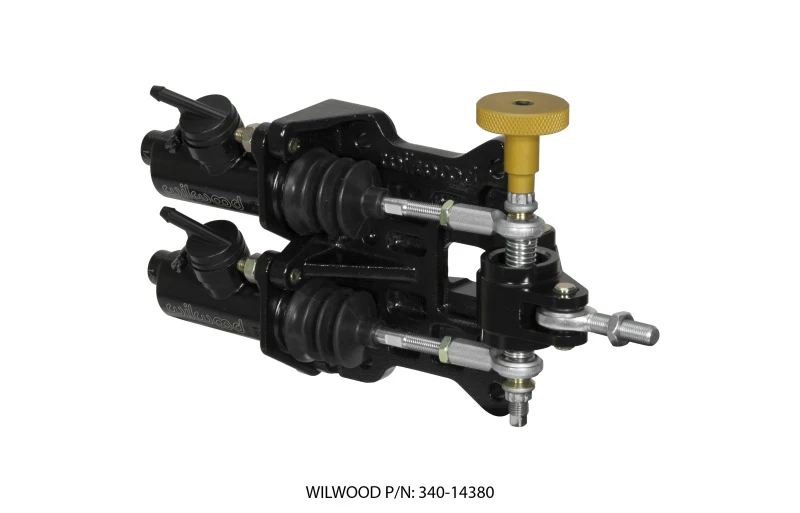

Wilwood 60 Degree MC Mount & Trubar Assembly
Take control of your brake bias with Wilwood's 60 Degree MC Mount & Trubar Assembly. Designed for Dirt Modifieds, Champ Cars, Sprint Cars, Midgets, and other applications where master cylinders need to be mounted remotely, this unit features a high-leverage pivot arm and a 1.48:1 input force ratio.
- Ideal for remote master cylinder mounting
- 60-degree mount for use with remote fill fluid reservoirs
- High-leverage pivot arm for increased input force
- Fixed trunnion bearing in pedal arm for ultimate precision
- Spherical rod-end bearing pushrod attachments for smooth operation
- Stronger and larger diameter 7/16-20 bar for quicker adjustment
Wilwood's Tru-Bar balance bar provides the ultimate in precision bias adjustment, control, and fine-tuning for race-prepped vehicles with twin brake master cylinder systems and proportionately sized calipers.
This product has not yet been assigned to any vehicle. We are working to ensure that this changes as soon as possible. Please contact us if you have any questions.
Wilwood manufactures performance brake parts and brake kits. Products include calipers, rotors, stainless brake lines, master cylinders, and proportioning valves. Wilwood’s substantial matrix of brake components and engineering techniques, along with computer-aided design and finite element analysis, allow them to quickly and reliably create custom brake systems for almost any application.
