Article no.:
C5317-036
Questions about the product? Write us!

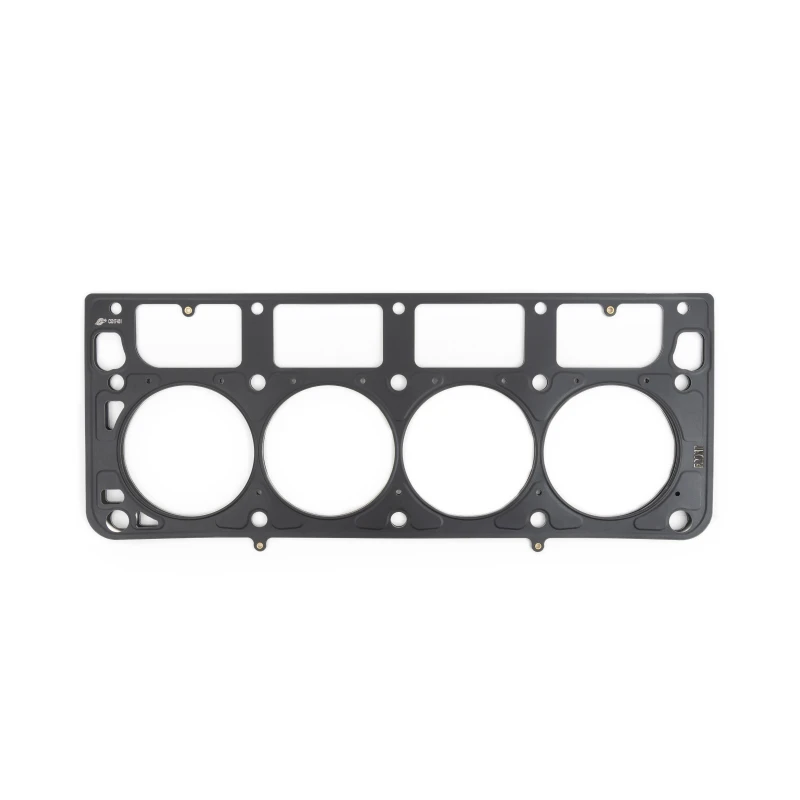

Cometic GM LS1 SB 4.130 inch Bore.036 inch MLS Headgasket
Get the best sealing performance for your high-output engine with the Cometic MLS (Multi-Layer Steel) Head Gasket. This gasket is designed to provide maximum sealing performance and requires no sealants. It's ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks, and can withstand the shearing force created by the two materials.
The Cometic MLS Head Gasket is comprised of multiple layers of stainless steel, which creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton, a fluoroelastomer rubber-based material that is heat resistant to 250°C/482°F.
- Comprised of multiple embossed layers of stainless steel
- Outer layers utilize a Viton rubber coating
- Compressed operating thickness is 0.036 inches
- Ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks
This product fits more vehicles than loaded. Please select your vehicle to see all fits.
| Make | Model | Year | Type |
|---|---|---|---|
| Buick | LaCrosse | 2008 | Super |
| Buick | LaCrosse | 2009 | Super |
| Buick | Rainier | 2004 | CXL |
| Buick | Rainier | 2005 | CXL |
| Buick | Rainier | 2006 | CXL |
| Buick | Rainier | 2007 | CXL |
| Cadillac | CTS | 2004 | V |
| Cadillac | CTS | 2005 | V |
| Cadillac | CTS | 2006 | V |
| Cadillac | CTS | 2007 | V |
| Cadillac | Escalade | 2002 | Base |
| Cadillac | Escalade | 2003 | Base |
| Cadillac | Escalade | 2004 | Base |
| Cadillac | Escalade | 2005 | Base |
| Chevrolet | Avalanche | 2007 | LS |
| Chevrolet | Avalanche | 2007 | LT |
| Chevrolet | Avalanche | 2007 | LTZ |
| Chevrolet | Avalanche | 2008 | LS |
| Chevrolet | Avalanche | 2008 | LT |
| Chevrolet | Avalanche | 2008 | LTZ |
| Chevrolet | Avalanche | 2009 | LS |
| Chevrolet | Avalanche | 2009 | LT |
| Chevrolet | Avalanche | 2009 | LTZ |
| Chevrolet | Avalanche | 2010 | LS |
| Chevrolet | Avalanche | 2010 | LT |
| Chevrolet | Avalanche | 2010 | LTZ |
| Chevrolet | Avalanche | 2011 | LS |
| Chevrolet | Avalanche | 2011 | LT |
| Chevrolet | Avalanche | 2011 | LTZ |
| Chevrolet | Avalanche | 2012 | LS |
| Chevrolet | Avalanche | 2012 | LT |
| Chevrolet | Avalanche | 2012 | LTZ |
| Chevrolet | Avalanche | 2013 | Black Diamond LS |
| Chevrolet | Avalanche | 2013 | Black Diamond LT |
| Chevrolet | Avalanche | 2013 | Black Diamond LTZ |
| Chevrolet | Avalanche 1500 | 2002 | Base |
| Chevrolet | Avalanche 1500 | 2002 | On Road Edition |
| Chevrolet | Avalanche 1500 | 2002 | Z71 |
| Chevrolet | Avalanche 1500 | 2003 | Base |
| Chevrolet | Avalanche 1500 | 2003 | North Face |
| Chevrolet | Avalanche 1500 | 2003 | On Road Edition |
| Chevrolet | Avalanche 1500 | 2003 | WBH |
| Chevrolet | Avalanche 1500 | 2003 | Z71 |
| Chevrolet | Avalanche 1500 | 2004 | Base |
| Chevrolet | Avalanche 1500 | 2004 | Z66 |
| Chevrolet | Avalanche 1500 | 2004 | Z71 |
| Chevrolet | Avalanche 1500 | 2005 | Base |
| Chevrolet | Avalanche 1500 | 2005 | LS |
| Chevrolet | Avalanche 1500 | 2005 | LT |
| Chevrolet | Avalanche 1500 | 2005 | Z66 |
| Chevrolet | Avalanche 1500 | 2005 | Z71 |
| Chevrolet | Avalanche 1500 | 2006 | LS |
| Chevrolet | Avalanche 1500 | 2006 | LT |
| Chevrolet | Avalanche 1500 | 2006 | Z66 |
| Chevrolet | Avalanche 1500 | 2006 | Z71 |
| Chevrolet | Camaro | 1997 | Base |
| Chevrolet | Camaro | 1997 | RS |
| Chevrolet | Camaro | 1997 | Z28 |
| Chevrolet | Camaro | 1998 | Base |
| Chevrolet | Camaro | 1998 | Z28 |
| Chevrolet | Camaro | 1998 | Z28 SS |
| Chevrolet | Camaro | 1999 | Base |
| Chevrolet | Camaro | 1999 | Z28 |
| Chevrolet | Camaro | 1999 | Z28 SS |
| Chevrolet | Camaro | 2000 | Base |
| Chevrolet | Camaro | 2000 | Z28 |
| Chevrolet | Camaro | 2000 | Z28 SS |
| Chevrolet | Camaro | 2001 | Base |
| Chevrolet | Camaro | 2001 | Z28 |
| Chevrolet | Camaro | 2001 | Z28 SS |
| Chevrolet | Camaro | 2002 | Base |
| Chevrolet | Camaro | 2002 | Z28 |
| Chevrolet | Camaro | 2002 | Z28 SS |
| Chevrolet | Camaro | 2010 | SS |
| Chevrolet | Camaro | 2011 | SS |
| Chevrolet | Camaro | 2012 | SS |
| Chevrolet | Camaro | 2013 | SS |
| Chevrolet | Camaro | 2014 | SS |
| Chevrolet | Camaro | 2015 | SS |
| Chevrolet | Caprice | 2011 | PPV |
| Chevrolet | Caprice | 2012 | PPV |
| Chevrolet | Caprice | 2013 | PPV |
| Chevrolet | Caprice | 2014 | PPV |
| Chevrolet | Caprice | 2015 | PPV |
| Chevrolet | Caprice | 2016 | PPV |
| Chevrolet | Caprice | 2017 | PPV |
| Chevrolet | Colorado | 2009 | LT |
| Chevrolet | Colorado | 2009 | WT |
| Chevrolet | Colorado | 2010 | LT |
| Chevrolet | Colorado | 2010 | WT |
| Chevrolet | Colorado | 2011 | LT |
| Chevrolet | Colorado | 2011 | WT |
| Chevrolet | Colorado | 2012 | LT |
| Chevrolet | Colorado | 2012 | WT |
| Chevrolet | Corvette | 1997 | Base |
| Chevrolet | Corvette | 1998 | Base |
| Chevrolet | Corvette | 1998 | Indianapolis 500 Pace Car |
| Chevrolet | Corvette | 1999 | Base |
| Chevrolet | Corvette | 2000 | Base |
| Chevrolet | Corvette | 2001 | Base |
Cometic manufactures engine gaskets for both domestic and import vehicles. Gasket kits are available for both bottom end and top end for the most popular vehicles, while their MLS head gaskets are known to be some of the best in the industry. Cometic’s 70,000 square foot, state-of-the-art R&D and manufacturing facility allows them to design gaskets for engines using the latest technology, such as Multi-Layer Steel (MLS) gaskets as well as using synthetic blends such as Aramid Fiber.
