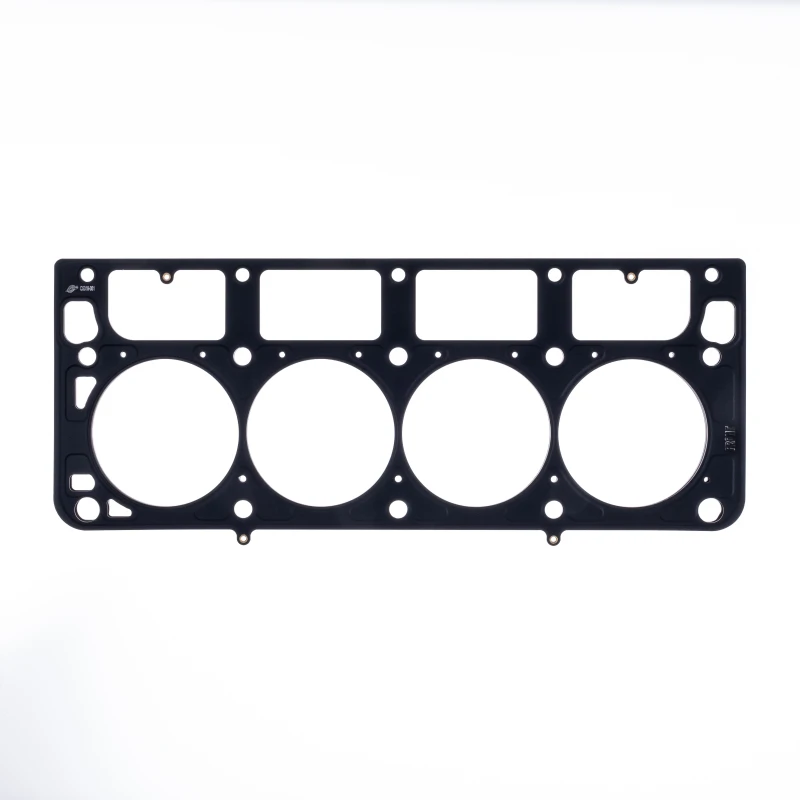

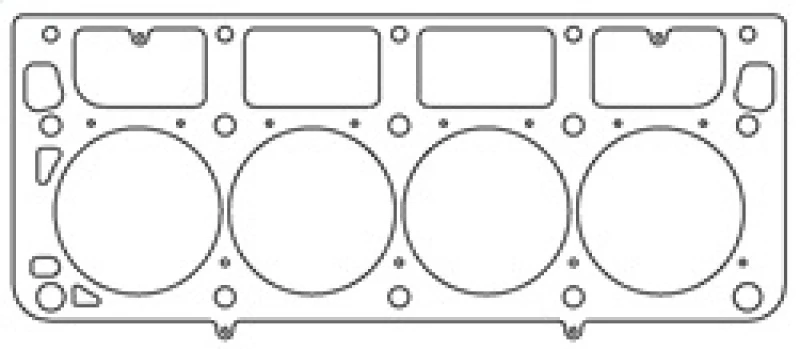

Cometic GM LS1 SB 4.160 inch Bore.075 inch MLS-5 Headgasket
Get the best sealing performance for your high-output engine with Cometic's MLS (Multi-Layer Steel) Head Gasket. This gasket is designed for GM Gen III/IV Small Block V8 LS Series engines and features a 4.160" bore. Comprised of multiple embossed layers of stainless steel with a Viton rubber coating, this gasket provides maximum sealing performance and requires no sealants.
- Ideal for aluminum heads to aluminum blocks and aluminum heads to cast iron blocks
- Withstands the shearing force created by the two materials
- Increased strength due to multiple layers of stainless steel
- Rebound and resist corrosion
- Outer layers are embossed and coated on both sides with Viton
- Center or shim layer is uncoated stainless steel
This product fits more vehicles than loaded. Please select your vehicle to see all fits.
| Make | Model | Year | Type |
|---|---|---|---|
| Buick | LaCrosse | 2008 | Super |
| Buick | LaCrosse | 2009 | Super |
| Buick | Rainier | 2004 | CXL |
| Buick | Rainier | 2005 | CXL |
| Buick | Rainier | 2006 | CXL |
| Buick | Rainier | 2007 | CXL |
| Cadillac | CTS | 2004 | V |
| Cadillac | CTS | 2005 | V |
| Cadillac | CTS | 2006 | V |
| Cadillac | CTS | 2007 | V |
| Cadillac | Escalade | 2002 | Base |
| Cadillac | Escalade | 2003 | Base |
| Cadillac | Escalade | 2004 | Base |
| Cadillac | Escalade | 2005 | Base |
| Chevrolet | Avalanche | 2007 | LS |
| Chevrolet | Avalanche | 2007 | LT |
| Chevrolet | Avalanche | 2007 | LTZ |
| Chevrolet | Avalanche | 2008 | LS |
| Chevrolet | Avalanche | 2008 | LT |
| Chevrolet | Avalanche | 2008 | LTZ |
| Chevrolet | Avalanche | 2009 | LS |
| Chevrolet | Avalanche | 2009 | LT |
| Chevrolet | Avalanche | 2009 | LTZ |
| Chevrolet | Avalanche | 2010 | LS |
| Chevrolet | Avalanche | 2010 | LT |
| Chevrolet | Avalanche | 2010 | LTZ |
| Chevrolet | Avalanche | 2011 | LS |
| Chevrolet | Avalanche | 2011 | LT |
| Chevrolet | Avalanche | 2011 | LTZ |
| Chevrolet | Avalanche | 2012 | LS |
| Chevrolet | Avalanche | 2012 | LT |
| Chevrolet | Avalanche | 2012 | LTZ |
| Chevrolet | Avalanche | 2013 | Black Diamond LS |
| Chevrolet | Avalanche | 2013 | Black Diamond LT |
| Chevrolet | Avalanche | 2013 | Black Diamond LTZ |
| Chevrolet | Avalanche 1500 | 2002 | Base |
| Chevrolet | Avalanche 1500 | 2002 | On Road Edition |
| Chevrolet | Avalanche 1500 | 2002 | Z71 |
| Chevrolet | Avalanche 1500 | 2003 | Base |
| Chevrolet | Avalanche 1500 | 2003 | North Face |
| Chevrolet | Avalanche 1500 | 2003 | On Road Edition |
| Chevrolet | Avalanche 1500 | 2003 | WBH |
| Chevrolet | Avalanche 1500 | 2003 | Z71 |
| Chevrolet | Avalanche 1500 | 2004 | Base |
| Chevrolet | Avalanche 1500 | 2004 | Z66 |
| Chevrolet | Avalanche 1500 | 2004 | Z71 |
| Chevrolet | Avalanche 1500 | 2005 | Base |
| Chevrolet | Avalanche 1500 | 2005 | LS |
| Chevrolet | Avalanche 1500 | 2005 | LT |
| Chevrolet | Avalanche 1500 | 2005 | Z66 |
| Chevrolet | Avalanche 1500 | 2005 | Z71 |
| Chevrolet | Avalanche 1500 | 2006 | LS |
| Chevrolet | Avalanche 1500 | 2006 | LT |
| Chevrolet | Avalanche 1500 | 2006 | Z66 |
| Chevrolet | Avalanche 1500 | 2006 | Z71 |
| Chevrolet | Camaro | 1997 | Base |
| Chevrolet | Camaro | 1997 | RS |
| Chevrolet | Camaro | 1997 | Z28 |
| Chevrolet | Camaro | 1998 | Base |
| Chevrolet | Camaro | 1998 | Z28 |
| Chevrolet | Camaro | 1998 | Z28 SS |
| Chevrolet | Camaro | 1999 | Base |
| Chevrolet | Camaro | 1999 | Z28 |
| Chevrolet | Camaro | 1999 | Z28 SS |
| Chevrolet | Camaro | 2000 | Base |
| Chevrolet | Camaro | 2000 | Z28 |
| Chevrolet | Camaro | 2000 | Z28 SS |
| Chevrolet | Camaro | 2001 | Base |
| Chevrolet | Camaro | 2001 | Z28 |
| Chevrolet | Camaro | 2001 | Z28 SS |
| Chevrolet | Camaro | 2002 | Base |
| Chevrolet | Camaro | 2002 | Z28 |
| Chevrolet | Camaro | 2002 | Z28 SS |
| Chevrolet | Camaro | 2010 | SS |
| Chevrolet | Camaro | 2011 | SS |
| Chevrolet | Camaro | 2012 | SS |
| Chevrolet | Camaro | 2013 | SS |
| Chevrolet | Camaro | 2014 | SS |
| Chevrolet | Camaro | 2015 | SS |
| Chevrolet | Caprice | 2011 | PPV |
| Chevrolet | Caprice | 2012 | PPV |
| Chevrolet | Caprice | 2013 | PPV |
| Chevrolet | Caprice | 2014 | PPV |
| Chevrolet | Caprice | 2015 | PPV |
| Chevrolet | Caprice | 2016 | PPV |
| Chevrolet | Caprice | 2017 | PPV |
| Chevrolet | Colorado | 2009 | LT |
| Chevrolet | Colorado | 2009 | WT |
| Chevrolet | Colorado | 2010 | LT |
| Chevrolet | Colorado | 2010 | WT |
| Chevrolet | Colorado | 2011 | LT |
| Chevrolet | Colorado | 2011 | WT |
| Chevrolet | Colorado | 2012 | LT |
| Chevrolet | Colorado | 2012 | WT |
| Chevrolet | Corvette | 1997 | Base |
| Chevrolet | Corvette | 1998 | Base |
| Chevrolet | Corvette | 1998 | Indianapolis 500 Pace Car |
| Chevrolet | Corvette | 1999 | Base |
| Chevrolet | Corvette | 2000 | Base |
| Chevrolet | Corvette | 2001 | Base |
Cometic manufactures engine gaskets for both domestic and import vehicles. Gasket kits are available for both bottom end and top end for the most popular vehicles, while their MLS head gaskets are known to be some of the best in the industry. Cometic’s 70,000 square foot, state-of-the-art R&D and manufacturing facility allows them to design gaskets for engines using the latest technology, such as Multi-Layer Steel (MLS) gaskets as well as using synthetic blends such as Aramid Fiber.
