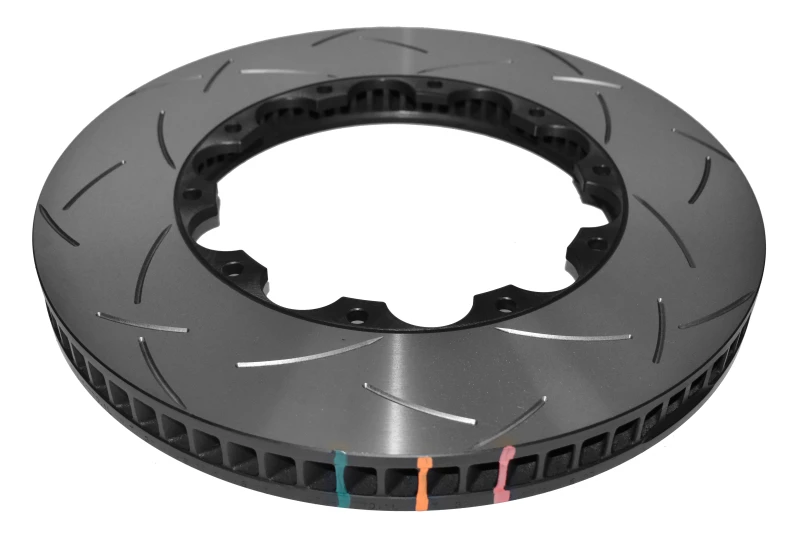

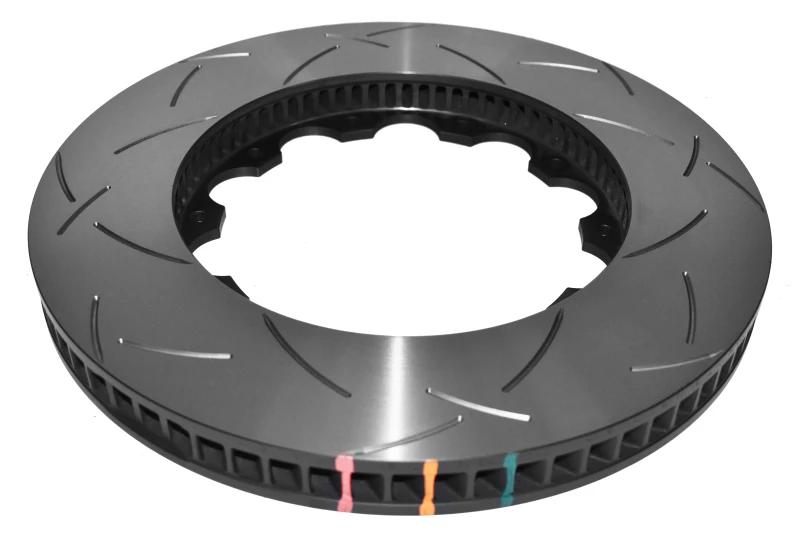

DBA 14-15 Chevy Corvette Z06 T3 5000 Series Left Front Slotted Replacement Friction Ring
€351.05*
Questions about the product? Write us!
Available from supplier. Delivery time: 4–5 business days (EU: +3 days)
incl. 19% VAT plus shipping costs
DBA 14-15 Chevy Corvette Z06 T3 5000 Series Left Front Slotted Replacement Friction Ring
Experience the ultimate in braking performance with DBA's 5000 Series rotors. As a composite 2-piece direct replacement brake rotor, it combines high carbon cast-iron rings with aerospace grade aluminum hats for optimal performance under the most strenuous circumstances.
Key features:
- Lightweight aluminum hats for reduced unsprung weight and improved heat management
- National Aerospace Standards (NAS) bolts and crimp nuts for secure fastening
- High carbon cast-iron rings for optimal braking performance
- Available in multiple slot, drill, and dimple designs and various vent designs
Ideal for high-performance street vehicles, track day, and club racing applications.
| Diameter [mm] | 370 |
| Thickness [mm] | 34 |
| Disc Vent | 72 Curved Vanes |
| Annulus [mm] (Maximum useable pad width) | 68 |
| Pitch Circle Diameter (P.C.D.) | 215 |
| Inside Diameter [mm] | 231 |
| Diameter & Number of Bolt Holes [mm] | 9 (x10) |
| Air Gap [mm] | 17 |
| Offset [mm] | 0 |
| Flange Inside Diameter [mm] | 191 |
| Flange Thickness [mm] | 7 |
| Hole Type | Round Hole |
| Stage | Stage 5 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| Replacement Nuts | Included |
| Make | Model | Year | Type |
|---|---|---|---|
| Chevrolet | Corvette | 2015 | Z06 |
| Chevrolet | Corvette | 2016 | Z06 |
