Article no.:
52990.1S
Questions about the product? Write us!

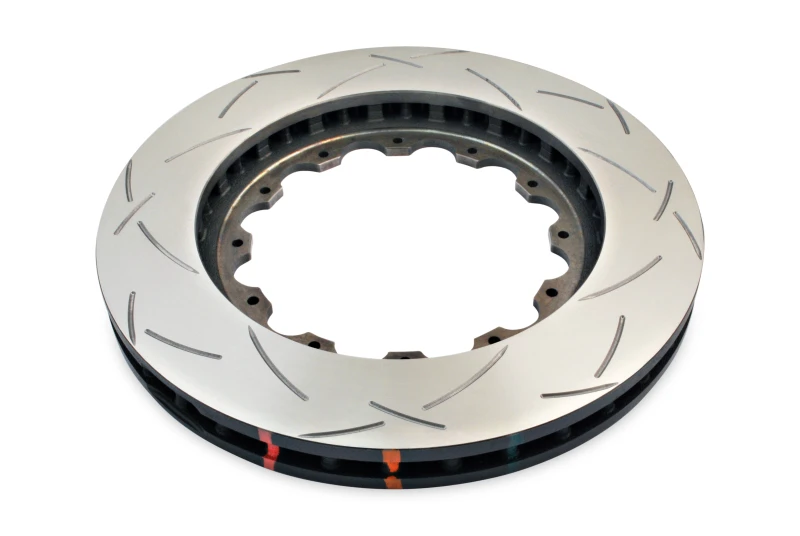

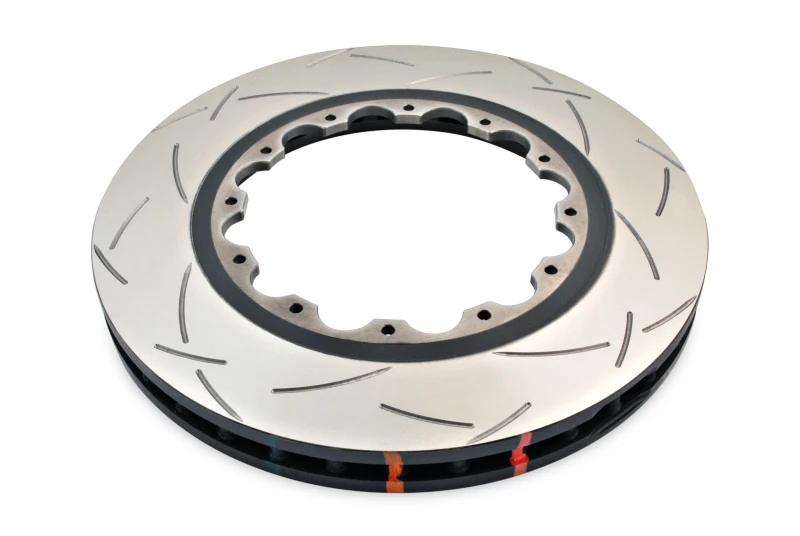

DBA 2009 Chevrolet Corvette ZR1 5000 Series Slotted Front Replacement Rotor
Experience the ultimate in braking performance with DBA's 5000 Series rotors, designed for high-performance street vehicles, track day, and club racing applications.
Featuring a composite 2-piece design, these rotors combine high-carbon cast-iron rings with aerospace-grade aluminum hats, held together with National Aerospace Standards (NAS) bolts and crimp nuts.
- Reduced unsprung weight for improved handling and braking performance
- Improved heat management via aluminum hats
- Uniform radial disc expansion through cast iron rings
- Available in multiple slot, drill, and dimple designs
| Diameter [mm] | 340 |
| Thickness [mm] | 32 |
| Disc Vent | Kangaroo Paw |
| Annulus [mm] (Maximum useable pad width) | 55 |
| Pitch Circle Diameter (P.C.D.) | 190,5 |
| Inside Diameter [mm] | 230 |
| Diameter & Number of Bolt Holes [mm] | 6.4 (x12) |
| Air Gap [mm] | 13 |
| Offset [mm] | 0 |
| Flange Inside Diameter [mm] | 174,88 |
| Flange Thickness [mm] | 7 |
| Hole Type | Round Hole |
| Stage | Stage 5 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| Replacement Nuts | Included |
| Make | Model | Year | Type |
|---|---|---|---|
| Cadillac | XLR | 2006 | Base |
| Cadillac | XLR | 2006 | V |
| Cadillac | XLR | 2007 | Base |
| Cadillac | XLR | 2007 | V |
| Cadillac | XLR | 2008 | Base |
| Cadillac | XLR | 2008 | Platinum |
| Cadillac | XLR | 2008 | V |
| Cadillac | XLR | 2009 | Platinum |
| Cadillac | XLR | 2009 | V |
DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
