DBA 5000 Series Slotted Brake Rotor 355x32mm Brembo Replacement Ring

Manufacturer: DBA

Article no.: 52923.1LS

€309.40*

Available from supplier. Delivery time: 4–5 business days (EU: +3 days)

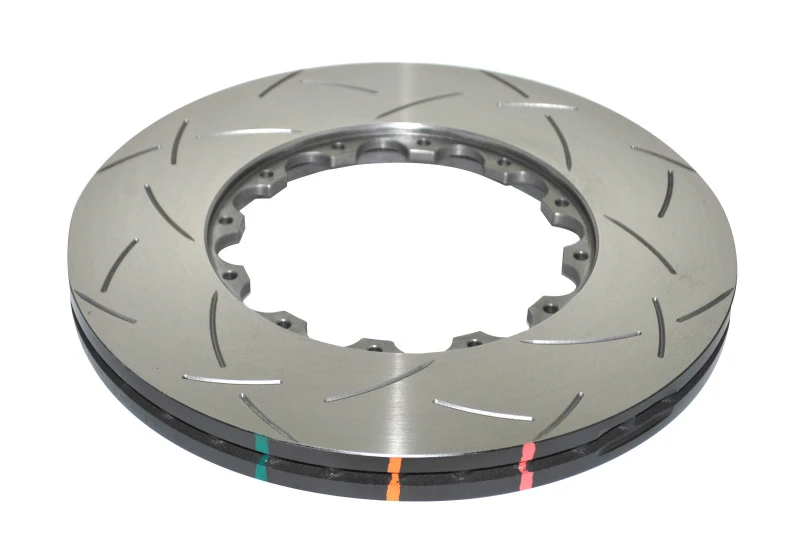

DBA 5000 Series Slotted Brake Rotor 355x32mm Brembo Replacement Ring

Take your braking performance to the next level with the DBA 5000 Series Slotted Brake Rotor. Designed for high-performance street vehicles, track day, and club racing applications, this 2-piece direct replacement brake rotor combines high carbon cast-iron rings with aerospace-grade aluminum hats for optimal performance under strenuous conditions.

Composite 2-piece design for improved heat management and weight reduction
High carbon cast-iron rings for optimal braking performance
Aerospace-grade aluminum hats (T6061-T6) for reduced unsprung weight
National Aerospace Standards (NAS) bolts and crimp nuts for secure assembly

Upgrade your brake system with the DBA 5000 Series Slotted Brake Rotor and experience improved braking performance and durability.

Diameter [mm]	355
Thickness [mm]	32
Disc Vent	48 Curved Vanes
Annulus [mm] (Maximum useable pad width)	53,5
Pitch Circle Diameter (P.C.D.)	233
Inside Diameter [mm]	248
Diameter & Number of Bolt Holes [mm]	8.15 (x10)
Air Gap [mm]	16
Offset [mm]	2,5
Flange Inside Diameter [mm]	209
Flange Thickness [mm]	8
Hole Type	Elongated Hole
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
Replacement Nuts	Included

This product has not yet been assigned to any vehicle. We are working to ensure that this changes as soon as possible. Please contact us if you have any questions.

DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
