Article no.:
42650XS-10
Questions about the product? Write us!

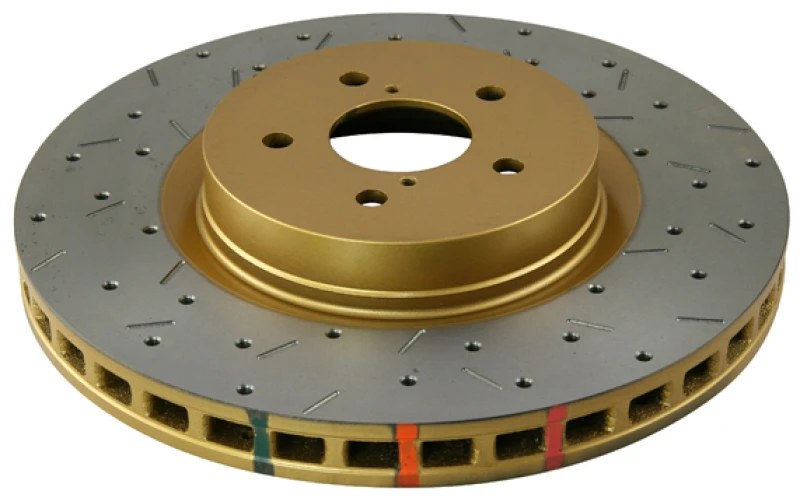

DBA 05-08 Subaru Legacy GT Front Drilled & Slotted 4000 Series Rotor
Upgrade your Subaru Legacy GT's braking performance with DBA's 4000 Series XS rotors, featuring our best technology and materials for maximum performance. Cast from XG-150 high carbon alloyed iron and undergoing Thermal Stability Profiling, these rotors can handle the increased stress and heat generated under intense braking applications.
- Kangaroo Paw ventilation system for increased surface area and heat dissipation
- Direct replacement suitability for easy installation
- CBN (Cubic Boron Nitride) machined turned for lower Disc Thickness Variation and parallelism
- Moisture-proof corrosion protection packaging
With a unique drill and slot pattern, these rotors are designed to provide improved braking effectiveness and reduced brake fade. Get the best out of your Subaru Legacy GT with DBA's 4000 Series XS rotors.
| Diameter [mm] | 316 |
| Disc Vent | Kangaroo Paw |
| Number of Holes | 10 |
| Inner Diameter [mm] | 58 |
| Minimum Thickness [mm] | 28 |
| Thickness [mm] | 30 |
| Height [mm] | 56.7 |
| Pitch Circle [mm] | 100 & 114.3 |
| Stage | Stage 3 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| Make | Model | Year | Type |
|---|---|---|---|
| Subaru | Forester | 2014 | 2.0XT Premium |
| Subaru | Forester | 2014 | 2.0XT Touring |
| Subaru | Forester | 2015 | 2.0XT Premium |
| Subaru | Forester | 2015 | 2.0XT Touring |
| Subaru | Forester | 2016 | 2.0XT Premium |
| Subaru | Forester | 2016 | 2.0XT Touring |
| Subaru | Forester | 2017 | 2.0XT Premium |
| Subaru | Forester | 2017 | 2.0XT Touring |
| Subaru | Legacy | 2003 | GT |
| Subaru | Legacy | 2004 | GT |
| Subaru | Legacy | 2005 | GT |
| Subaru | Legacy | 2005 | GT Limited |
| Subaru | Legacy | 2005 | i |
| Subaru | Legacy | 2005 | Limited |
| Subaru | Legacy | 2006 | GT |
| Subaru | Legacy | 2006 | GT spec.B |
| Subaru | Legacy | 2007 | 2.5i |
| Subaru | Legacy | 2007 | GT Limited |
| Subaru | Legacy | 2007 | GT spec.B |
| Subaru | Legacy | 2008 | 2.5i |
| Subaru | Legacy | 2008 | 2.5i Limited |
| Subaru | Legacy | 2008 | 2.5i Special Edition |
| Subaru | Legacy | 2008 | 3.0 R Limited |
| Subaru | Legacy | 2008 | GT Limited |
| Subaru | Legacy | 2008 | GT spec.B |
| Subaru | Legacy | 2009 | 2.5i |
| Subaru | Legacy | 2009 | 2.5i Limited |
| Subaru | Legacy | 2009 | 2.5i Special Edition |
| Subaru | Legacy | 2009 | GT Limited |
| Subaru | Legacy | 2009 | GT spec.B |
| Subaru | Legacy | 2010 | 2.5GT |
| Subaru | Legacy | 2010 | 2.5i |
| Subaru | Legacy | 2010 | 2.5i Limited |
| Subaru | Legacy | 2010 | 2.5i Premium |
| Subaru | Legacy | 2010 | 3.6R |
| Subaru | Legacy | 2010 | 3.6R Limited |
| Subaru | Legacy | 2010 | 3.6R Premium |
| Subaru | Legacy | 2011 | 2.5GT |
| Subaru | Legacy | 2011 | 2.5i |
| Subaru | Legacy | 2011 | 2.5i Limited |
| Subaru | Legacy | 2011 | 2.5i Premium |
| Subaru | Legacy | 2011 | 3.6R |
| Subaru | Legacy | 2011 | 3.6R Limited |
| Subaru | Legacy | 2011 | 3.6R Premium |
| Subaru | Legacy | 2012 | 3.6R |
| Subaru | Legacy | 2012 | 3.6R Limited |
| Subaru | Legacy | 2012 | 3.6R Premium |
| Subaru | Legacy | 2013 | 3.6R |
| Subaru | Legacy | 2013 | 3.6R Limited |
| Subaru | Legacy | 2014 | 2.5i |
| Subaru | Legacy | 2014 | 2.5i Limited |
| Subaru | Legacy | 2014 | 2.5i Premium |
| Subaru | Legacy | 2014 | 2.5i Sport |
| Subaru | Legacy | 2014 | 3.6R Limited |
| Subaru | Outback | 2010 | 3.6R |
| Subaru | Outback | 2010 | 3.6R Limited |
| Subaru | Outback | 2010 | 3.6R Premium |
| Subaru | Outback | 2011 | 3.6R |
| Subaru | Outback | 2011 | 3.6R Limited |
| Subaru | Outback | 2011 | 3.6R Premium |
| Subaru | Outback | 2012 | 3.6R |
| Subaru | Outback | 2012 | 3.6R Limited |
| Subaru | Outback | 2012 | 3.6R Premium |
| Subaru | Outback | 2013 | 3.6R |
| Subaru | Outback | 2013 | 3.6R Limited |
| Subaru | WRX | 2015 | Base |
| Subaru | WRX | 2015 | Limited |
| Subaru | WRX | 2015 | Premium |
| Subaru | WRX | 2016 | Base |
| Subaru | WRX | 2016 | Limited |
| Subaru | WRX | 2016 | Premium |
| Subaru | WRX | 2017 | Base |
| Subaru | WRX | 2017 | Limited |
| Subaru | WRX | 2017 | Premium |
DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
