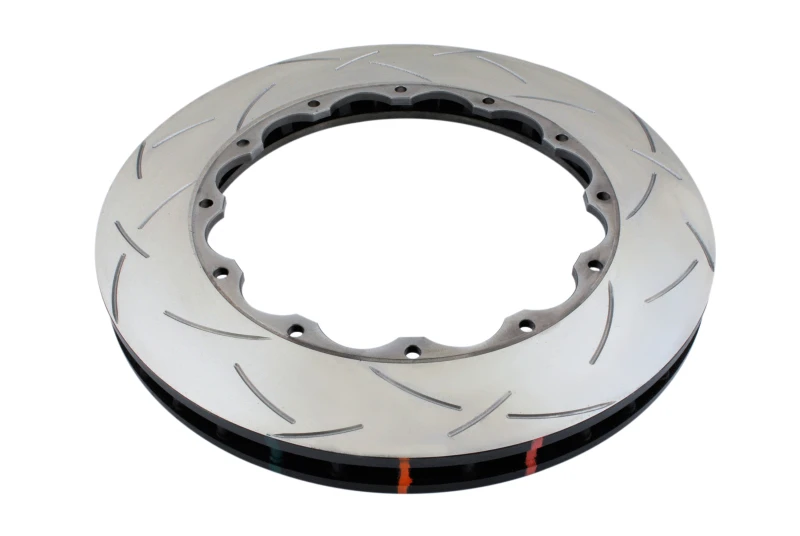

DBA T3 5000 Series Replacement Slotted Rotor

Manufacturer: DBA

Article no.: 57890.1S

€381.99*

Available from supplier. Delivery time: 4–5 business days (EU: +3 days)

DBA T3 5000 Series Replacement Slotted Rotor

Take your braking performance to the next level with the DBA T3 5000 Series Replacement Slotted Rotor. Designed for high-performance street vehicles, track day, and club racing applications, this rotor is engineered to provide optimal performance under the most strenuous circumstances.

Made from high-quality materials, the 5000 Series rotor features a composite 2-piece design with high carbon cast-iron rings and aerospace-grade aluminum hats (T6061-T6). This design allows for uniform radial disc expansion and reduced heat transfer from disc to hub.

Composite 2-piece design for improved heat management and weight reduction
High carbon cast-iron rings for optimal braking performance
Aerospace-grade aluminum hats (T6061-T6) for reduced unsprung weight
National Aerospace Standards (NAS) bolts and crimp nuts for secure attachment

Diameter [mm]	405
Thickness [mm]	34
Disc Vent	Kangaroo Paw
Annulus [mm] (Maximum useable pad width)	62
Pitch Circle Diameter (P.C.D.)	265
Inside Diameter [mm]	281
Diameter & Number of Bolt Holes [mm]	9 (x12)
Air Gap [mm]	16
Offset [mm]	0
Flange Inside Diameter [mm]	242
Flange Thickness [mm]	7
Hole Type	Round Hole
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
Replacement Nuts	Not Included

This product has not yet been assigned to any vehicle. We are working to ensure that this changes as soon as possible. Please contact us if you have any questions.

DBA manufactures brake rotors for the automotive performance market. Their products include slotted and/or drilled rotors for both street and race applications. DBA’s unique “kangaroo paw” vented design utilizes teardrop patterned pillars, which increases cooling efficiency up to 20% over traditional vented rotors. DBA rotors also feature thermo-graphic paint markings that indicate the temperature of the rotor at specified thresholds, allowing the user to check brake performance quickly and easily.
